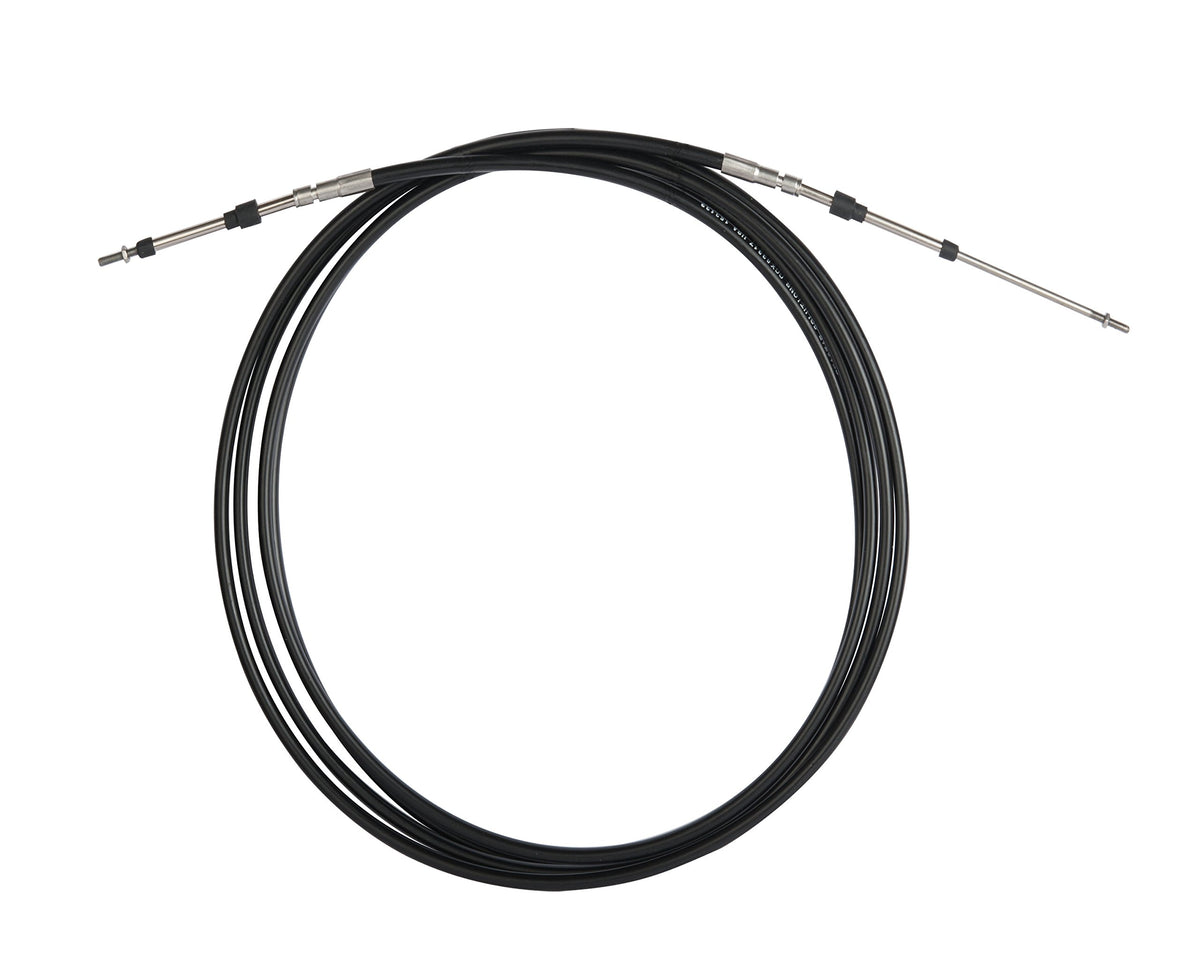

SeaStar CCX63308 Xtreme 3300 Control Cable, 8 Feet, for DS Dual Station Throttle

The SeaStar CCX63308 is an 8-foot Xtreme 3300 (33C) series control cable built for dual-function mechanical engine controls on boats, including dual-station DS throttle setups. SeaStar Solutions recommends using this 33C cable, part number CCX633XX, specifically with the DS unit, allowing both a single-engine boat and a dual-station boat to use just one station selector. Simply put both control levers in neutral and turn the selector switch to change stations. Note that this DS throttle unit configuration is a pull-only setup; a push throttle application requires the outboard DS throttle unit instead.

Built on SeaStar's patented Xtreme Splined Core technology, this cable uses ridges on the core for a close fit with the cable's inner liner, giving smooth movement with minimum lost motion. The cable features a 4 inch minimum bend radius (versus an 8 inch minimum bend radius for standard cables), making it well suited to complex or long cable runs, or foot throttle applications on performance and bass boats. It is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, and it uses 0.033 inch oil tempered lay wires for strength and performance. Terminals and conduit fittings are stainless steel for added corrosion resistance, and the cable is lubricated for life at the factory. Each end has a 10-32 threaded terminal with a clamp-type fitting, designed to fit aftermarket engine controls as well as OEM units, including SeaStar Solutions and other controls that accept universal type 10-32 threaded cable ends. Made in the U.S.A. And backed by a limited warranty.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63308
• Cable Series: Xtreme 3300 (33C) TFXtreme
• Cable Length: 8 feet
• Application: Pull-only DS dual station throttle setup
• Terminal Type: 10-32 threaded terminal with clamp-type fitting
• Minimum Bend Radius: 4 inches
• Jacket: 0.34 inch Super Tough HDPE
• Lay Wires: 0.033 inch oil tempered
• Terminal and Conduit Fitting Material: Stainless steel
• Core Technology: Xtreme Splined, coated core
• Color: Black
• Weight: 1.3 pounds
• Country of Origin: Made in U.S.A.
• UPC: 808282271466

Fitment

• Designed for use with SeaStar Solutions DS dual station throttle units (pull-only configuration)
• Fits SeaStar Solutions and other controls that accept universal type 10-32 threaded cable ends
• Compatible with aftermarket engine controls as well as Original Equipment Manufacturer units

Replaces (OEM)

• No specific OEM replacement numbers listed for this part

Frequently Asked Questions

What is the SeaStar CCX63308 used for? The CCX63308 is an 8-foot Xtreme 3300 (33C) control cable used with dual-function mechanical engine controls, and SeaStar Solutions specifically recommends it for use with the DS dual station throttle unit.

Is this cable a push or pull throttle cable? The CCX63308 is set up for a pull-only DS throttle configuration; if you need a push throttle application, the outboard DS throttle unit is required instead.

How long is the CCX63308 control cable? This control cable measures 8 feet in length.

How much does the CCX63308 weigh? The SeaStar CCX63308 control cable weighs 1.3 pounds.

What is the cable jacket made of? The CCX63308 uses a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

What type of terminal ends does this cable have? Each end of the CCX63308 has a 10-32 threaded terminal with a clamp-type fitting, using the existing connection components on compatible controls.

Will the CCX63308 fit controls other than SeaStar Solutions? Yes, this cable is designed to fit aftermarket engine controls as well as Original Equipment Manufacturer units that accept universal type 10-32 threaded cable ends.

What makes the Xtreme cable different from a standard control cable? The CCX63308 has a 4 inch minimum bend radius compared to an 8 inch minimum bend radius on standard cables, thanks to its Xtreme Splined Core, which makes it better suited to tight, complex, or long cable runs.

How do I switch stations with a dual station setup using this cable? With the CCX63308 installed on a DS unit, you put both control levers in neutral and turn the selector switch to change between stations.

Is the CCX63308 pre-lubricated? Yes, the cable is lubricated for life at the factory, so no additional lubrication is needed at installation.

What color is the CCX63308 cable? The CCX63308 control cable is black.

Where is the CCX63308 manufactured? The SeaStar CCX63308 control cable is made in the U.S.A.
