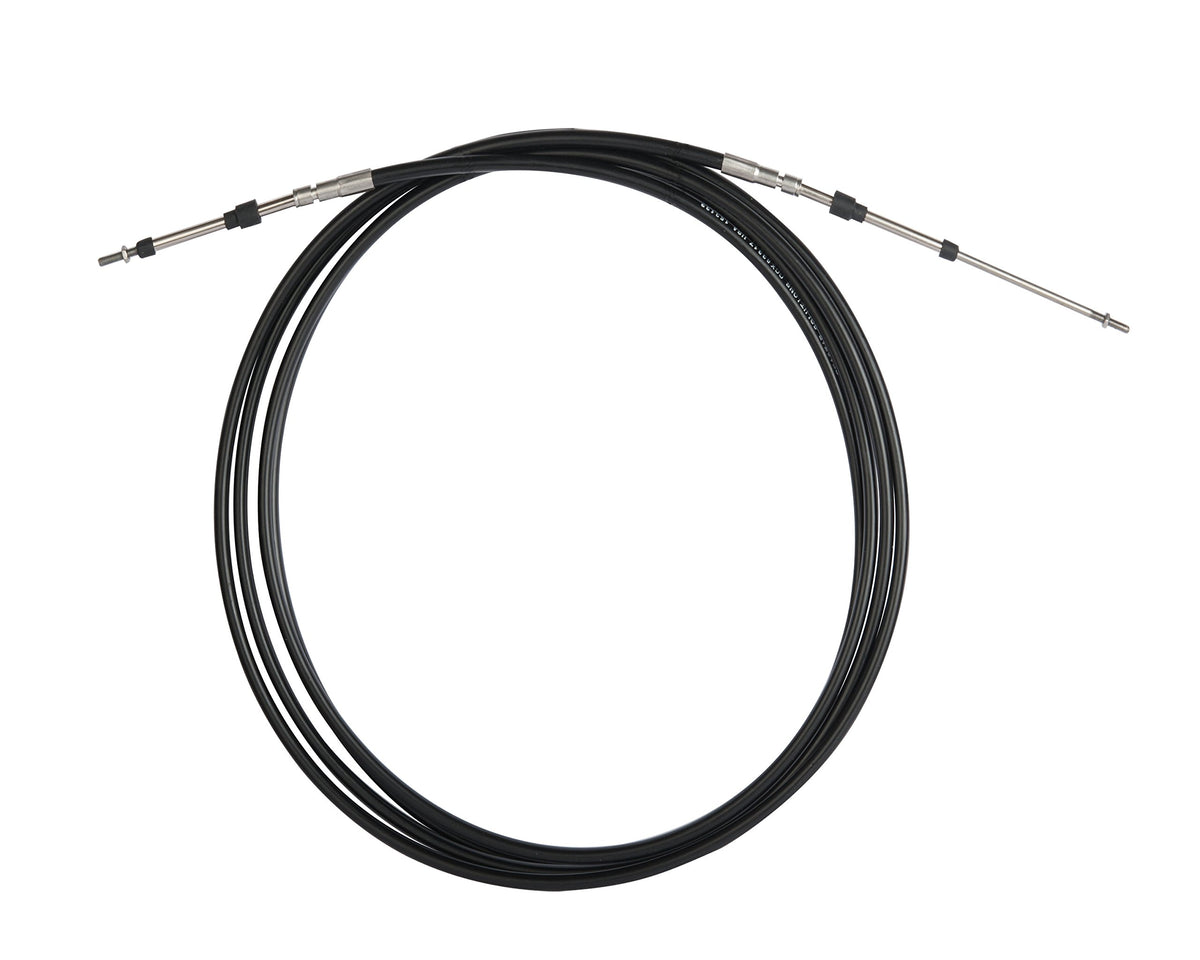

SeaStar Xtreme Control Cable CCX63313, 13 Feet, 10-32 Threaded Universal Marine Engine Control Cable

The SeaStar Xtreme Control Cable CCX63313 is a 13-foot, 3300/33C style mechanical control cable built for SeaStar controls and other controls that accept universal 10-32 threaded cable ends. It is designed as an OEM direct-replacement type cable for SeaStar Solutions controls and is also engineered to fit aftermarket engine controls as well as Original Equipment Manufacturer units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and Tohatsu, along with many inboard applications. It will also fit Evinrude, Johnson, OMC, and Mercury engines when used with the correct engine adapter kit.

At the core of the CCX63313 is SeaStar's Xtreme Technology, which uses a patented splined, coated core element for maximum smoothness with minimal lost motion. The cable has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius for standard control cables, which makes it well suited to complex or long cable runs and foot throttle applications on performance and bass boats. The cable is protected by a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, and it uses 0.033 inch oil tempered lay wires for strength and performance. Each end has a 10-32 threaded terminal and a clamp-type fitting, with stainless steel terminals and conduit fittings for added corrosion protection. The cable is lubricated for life at the factory and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63313
• Item Type: Control Cable Assy., 3300 TFXtreme, 13 feet
• Length: 13 feet
• Cable Type: 3300/33C universal control cable
• Terminal Ends: 10-32 threaded terminal with clamp-type fitting at each end
• Minimum Bend Radius: 4 inches (standard cables require an 8 inch minimum bend radius)
• Jacket: 0.34 inch super tough HDPE jacket
• Lay Wire: 0.033 inch oil tempered lay wires
• Core: Xtreme splined, coated core element
• Terminal and Fitting Material: Stainless steel
• Color: Black
• Weight: 1.83 pounds
• Country of Origin: Made in the U.S.A.
• UPC: 808282271527

Fitment

• SeaStar Solutions controls and other controls that accept universal 10-32 threaded cable ends
• Aftermarket engine controls and OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and Tohatsu, plus many inboard applications
• Evinrude, Johnson, OMC, and Mercury engines when used with the correct engine adapter kit

Frequently Asked Questions

How long is the SeaStar CCX63313 control cable? The SeaStar CCX63313 is a 13-foot control cable, part of the 3300/33C universal cable family.

What controls will the CCX63313 fit? This cable fits SeaStar Solutions controls and other controls that accept universal 10-32 threaded cable ends, and it is designed to work with aftermarket engine controls as well as OEM units.

Will this cable work with my Mercury or Evinrude engine? Yes, the CCX63313 will fit Evinrude, Johnson, OMC, and Mercury engines when used with the correct engine adapter kit.

Does the CCX63313 fit outboard brands like Yamaha or Suzuki? Yes, this cable is designed to fit OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and Tohatsu, in addition to many inboard applications.

What is the bend radius of the CCX63313 compared to a standard control cable? A 4 inch minimum bend radius, versus an 8 inch minimum bend radius for standard control cables, which makes the CCX63313 better suited to tight or complex cable routing.

What kind of terminal ends does this cable have? Each end of the CCX63313 has a 10-32 threaded terminal with a clamp-type fitting, and the terminals and conduit fittings are stainless steel for added corrosion protection.

What is the jacket made of on the CCX63313 cable? It uses a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

Is the CCX63313 pre-lubricated? Yes, the CCX63313 control cable is lubricated for life at the factory.

How much does the CCX63313 control cable weigh? The SeaStar CCX63313 control cable weighs 1.83 pounds.

Where is the SeaStar CCX63313 control cable made? This control cable is made in the U.S.A.

Is this cable good for foot throttle setups on performance or bass boats? Yes, the CCX63313 is ideal for foot throttle applications on performance and bass boats and is designed for complex or long cable runs.

What technology is inside the CCX63313 cable core? It uses SeaStar's Xtreme Technology, which is a splined, coated core element built for smooth movement with minimal lost motion, along with 0.033 inch oil tempered lay wires.
