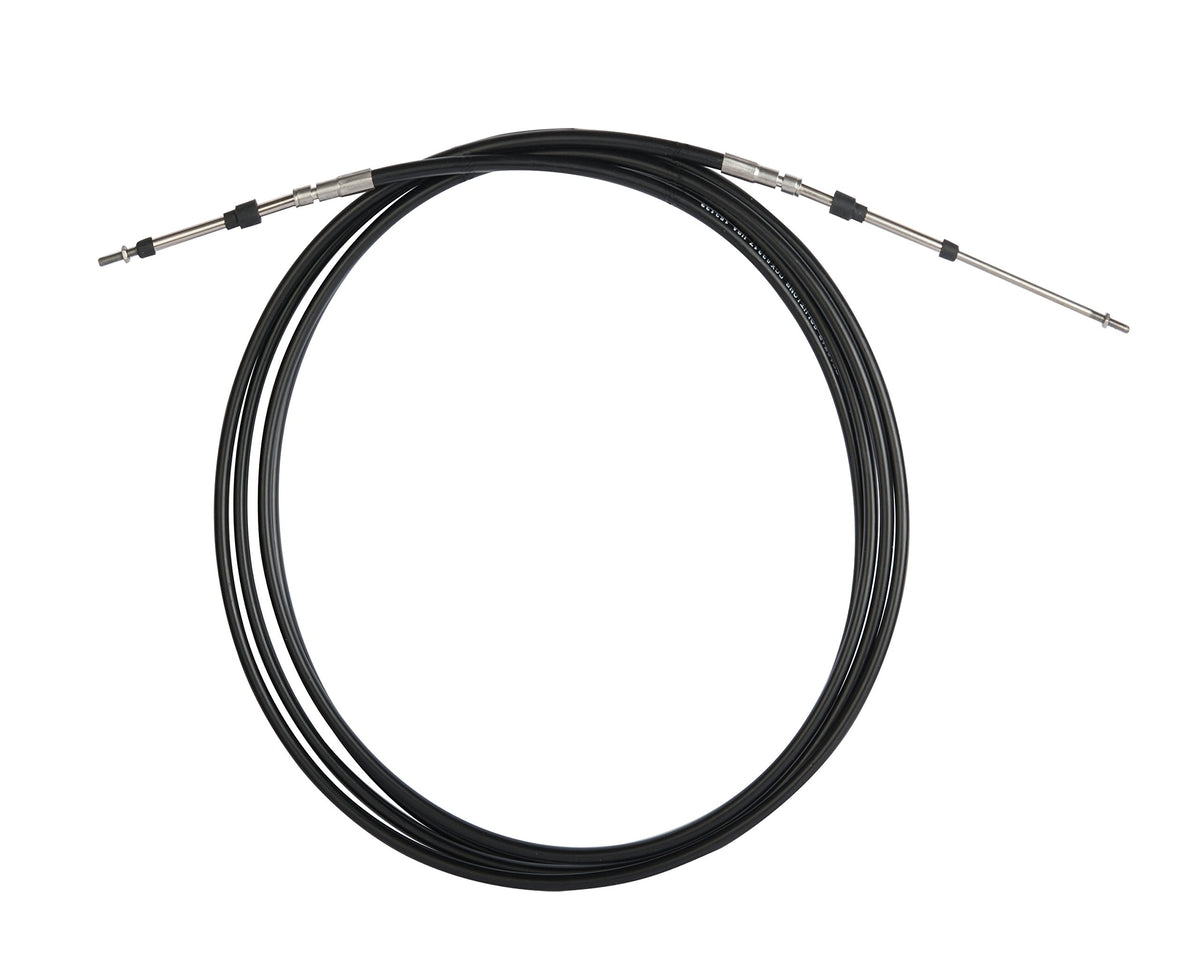

SeaStar TFXtreme 3300 Control Cable CCX63323, 23 Feet, for DS Dual Station Throttle Units

The SeaStar TFXtreme 3300 Control Cable, part number CCX63323, is a 23-foot mechanical control cable built for dual station boat setups. SeaStar Solutions specifies this 33C cable (part number stem CCX633XX) for use with its DS dual station control unit, which lets a boat run side mount controls at two helm stations. With the DS unit installed, switching stations is as simple as putting both levers in neutral and turning the selector switch; this cable is the recommended cable for making that control run work smoothly. Note that the DS throttle unit this cable is intended for is a pull-only setup -- for a push throttle configuration, the outboard DS throttle unit is used instead.

Cable ends use a 10-32 threaded terminal with a clamp-type fitting, so the cable connects to the existing connection components on SeaStar and other controls that accept universal 10-32 threaded cable ends. The XTREME design uses a patented splined, coated core that keeps a close fit with the cable's inner liner for easy, low-lost-motion movement, oil tempered lay wires for strength, and stainless steel terminals and conduit fittings for corrosion resistance. A 0.34 inch super tough HDPE jacket resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, and the HDPE liner is lubricated for life at the factory. The XTREME cable's 4 inch minimum bend radius (versus 8 inches for standard cables) suits complex or long cable runs, tight engine rooms, and foot throttle applications on performance and bass boats. It is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63323
• Length: 23 feet
• Cable Series: 3300 / 33C TFXtreme
• Terminal Type: 10-32 threaded terminal with clamp-type fitting
• Jacket Material and Thickness: 0.34 inch super tough HDPE jacket
• Minimum Bend Radius: 4 inches
• Lay Wire Diameter: 0.033 inch, oil tempered
• Core Type: XTREME splined, coated core
• Terminal and Conduit Fitting Material: Stainless steel
• Liner Material: HDPE, lubricated for life
• Country of Origin: Made in U.S.A.
• Weight: 2.89 pounds

Fitment

This cable is recommended by SeaStar Solutions for use with its DS dual station control unit, which is a pull-only throttle setup (a separate outboard DS throttle unit is used for push throttle applications). It is also designed to fit SeaStar and other engine controls that accept universal 10-32 threaded cable ends.

Frequently Asked Questions

What is SeaStar control cable CCX63323 used for? CCX63323 is a 23-foot SeaStar TFXtreme 3300/33C mechanical control cable, recommended by SeaStar Solutions for use with its DS dual station control unit so a boat can be operated from two helm stations with side mount controls.

Is CCX63323 a push or pull throttle cable? When used with the DS throttle unit, CCX63323 is set up for a pull-only configuration; a separate outboard DS throttle unit is used if a push throttle setup is needed.

What length is the CCX63323 control cable? This cable is 23 feet long, as indicated by the CCX63323 part number within SeaStar's CCX633XX cable line.

What type of cable ends does CCX63323 have? It has a 10-32 threaded terminal with a clamp-type fitting at each end, allowing it to use existing connection components on controls built for universal 10-32 threaded cable ends.

What is the minimum bend radius of the TFXtreme CCX63323 cable? The XTREME design has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which suits tight or complex cable routing.

What is the cable jacket made of? CCX63323 has a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX63323 cable come pre-lubricated? Yes, the HDPE liner on this SeaStar TFXtreme cable is lubricated for life at the factory.

How much does the CCX63323 control cable weigh? The CCX63323 control cable weighs 2.89 pounds.

Can CCX63323 be used for a single station boat? SeaStar specifies this cable for use with its DS unit, which is designed to allow dual function mechanical controls in a dual station boat, including single engine or dual station applications through one station selector.

Where is the CCX63323 control cable made? This SeaStar TFXtreme control cable is made in the U.S.A.

What core design does the TFXtreme CCX63323 cable use? It uses SeaStar's XTREME splined, coated core, which keeps a close fit with the cable's inner liner for smooth movement with minimal lost motion.

Are the terminals on CCX63323 corrosion resistant? Yes, CCX63323 uses stainless steel terminals and conduit fittings for added corrosion protection.
