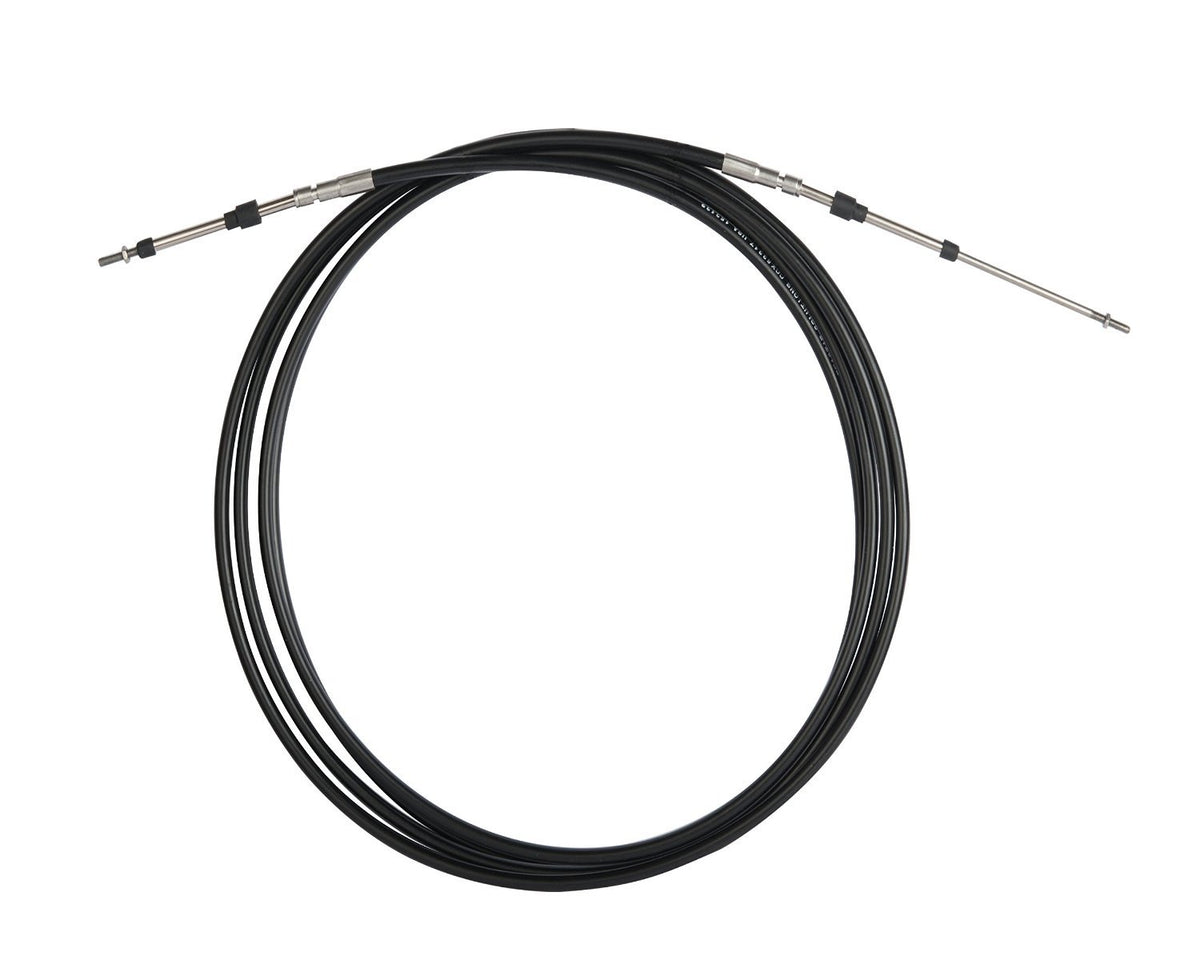

SeaStar CCX63342 XTREME 3300/33C Control Cable, 42 Feet, for Dual Station DS Throttle Units

The SeaStar CCX63342 is a 42-foot XTREME 3300/33C control cable built for dual-function mechanical engine controls, including dual station boat setups that use a SeaStar DS throttle unit. SeaStar Solutions recommends this 33C cable specifically for use with the DS unit, which allows a single station selector to serve either a single engine or a dual station boat: put both control levers in neutral, turn the selector switch, and the active station changes over. Side mount controls can also be paired with this cable for dual station arrangements. Note that this is a pull-only cable configuration for the DS throttle unit; a push-throttle setup requires the outboard DS throttle unit instead.

Built with SeaStar's patented XTREME splined core technology, the cable's ridged core rides smoothly inside the inner liner for minimal lost motion and easy movement, even over long or complex cable runs. A 0.34 inch super tough HDPE jacket resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, while 0.033 inch oil tempered lay wires add strength. Stainless steel terminals and conduit fittings resist corrosion, and each end uses a 10-32 threaded terminal with a clamp-type fitting compatible with existing connection components. The cable carries a 4 inch minimum bend radius, versus an 8 inch minimum for standard cables, giving installers more flexibility in tight engine rooms. It is lubricated for life at the factory and made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63342
• Cable Length: 42 feet
• Cable Type: 3300/33C Universal control cable
• Terminal Ends: 10-32 threaded terminal with clamp-type fitting, both ends
• Minimum Bend Radius: 4 inches (XTREME) versus 8 inches for standard cables
• Jacket: 0.34 inch super tough HDPE jacket
• Lay Wires: 0.033 inch oil tempered
• Core: XTREME splined, coated core element
• Terminal and Fitting Material: Stainless steel
• Color: Black
• Material: Metal
• Weight: 5.02 pounds
• Recommended Use: SeaStar DS dual station throttle unit, pull-only configuration
• Country of Origin: Made in U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects

Frequently Asked Questions

What is the length of the SeaStar CCX63342 control cable? The SeaStar CCX63342 is 42 feet long, part of the XTREME 3300/33C control cable lineup.

Is the CCX63342 a push or pull cable? The CCX63342 is a pull-only cable set up for use with the SeaStar DS dual station throttle unit; a push-throttle application requires the outboard DS throttle unit instead.

Can this cable be used on a dual station boat? Yes, SeaStar Solutions recommends the CCX63342 33C cable specifically for use with the DS unit, which lets one station selector serve either a single engine or a dual station boat setup.

How do I switch stations with the DS unit and this cable? Put both control levers in neutral and turn the selector switch; the DS unit paired with the CCX63342 cable then changes the active control station.

What type of terminal ends does the CCX63342 have? Each end of the CCX63342 uses a 10-32 threaded terminal with a clamp-type fitting, designed to work with existing connection components.

What is the minimum bend radius of this cable? The CCX63342 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius for standard control cables, which helps with tight or complex cable runs.

What is the cable jacket made of? A 0.34 inch super tough HDPE jacket covers the CCX63342, resisting abrasion and withstanding UV, salt water, chemicals, gasoline, and oil.

How much does the CCX63342 weigh? The CCX63342 weighs 5.02 pounds.

Does this cable work with side mount controls? Yes, side mount controls can be used in dual station boats when paired with the CCX63342 and a compatible DS unit.

Is the CCX63342 lubricated or does it need grease before installation? The CCX63342 is lubricated for life at the factory, so no additional lubrication is needed before installation.

What core technology does the CCX63342 use? The CCX63342 uses SeaStar's XTREME splined, coated core element, which rides closely against the cable's inner liner for smooth movement with minimal lost motion.

Where is the CCX63342 manufactured? The CCX63342 control cable is made in the U.S.A.
