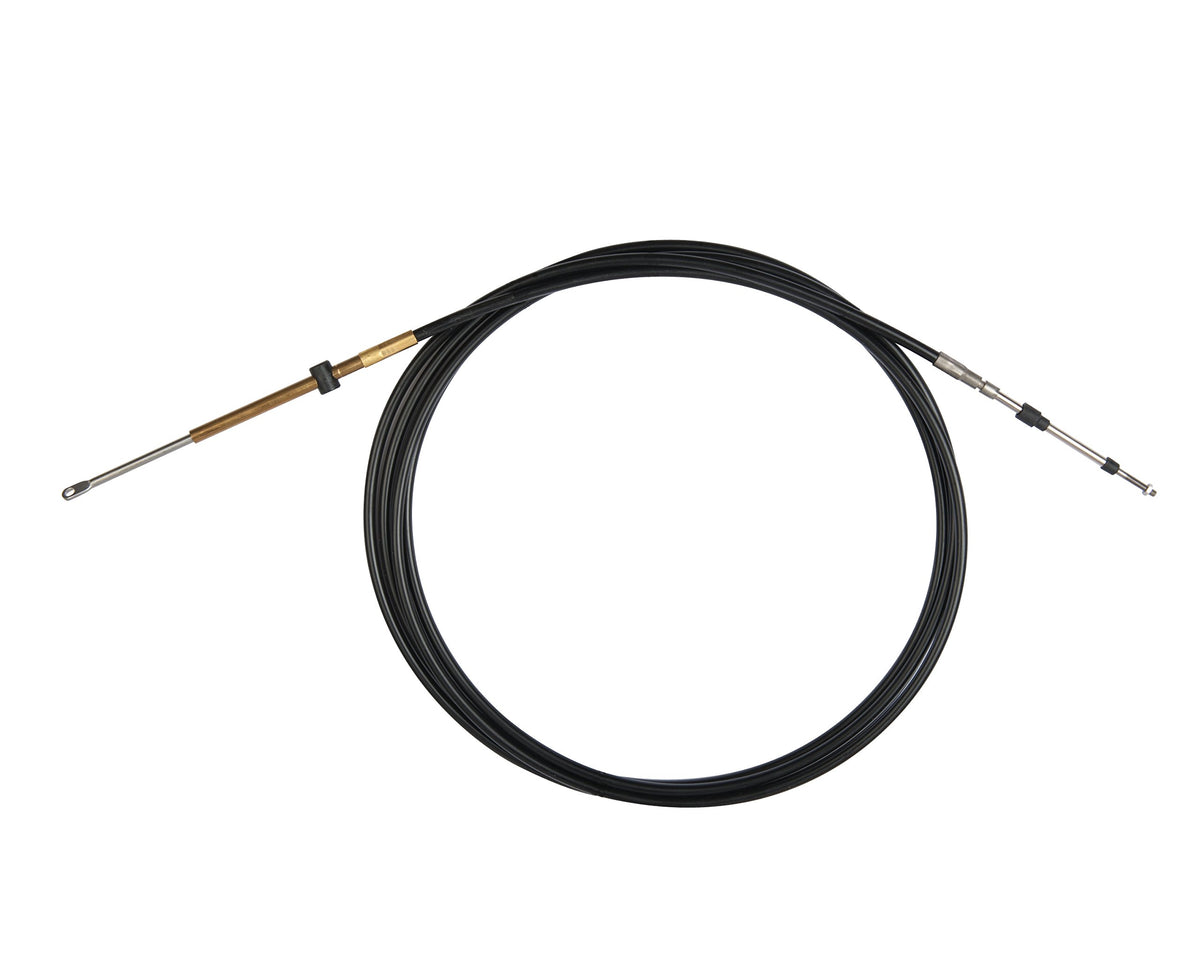

SeaStar CCX74020 Xtreme Control Cable, 20 Feet, Top Mount BRP/OMC Control for OMC Turbo Jet and Volvo Engines

The SeaStar CCX74020 is a 20 foot Xtreme Control Cable engineered as a drop-in replacement for original equipment control cables on OMC Turbo Jet engines with OMC top mount controls, and on Volvo engines using Top Mount BRP/OMC Controls. It connects using the existing OEM-style connection components, so no adapter kit is needed on applications that already use this proprietary top mount connection.

Xtreme Control Cables use SeaStar's patented Splined Core technology, where ridges on the core create a close fit with the cable's inner liner for easy movement and minimal lost motion. This gives the cable a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on SeaStar's standard 3300/33C cables, making it well suited to complex or long cable runs, tight engine compartments, and foot throttle applications on performance and bass boats. The cable is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, with 0.033 inch oil tempered lay wires for strength and stainless steel terminals and brass fittings for corrosion resistance.

The cable is lifetime lubricated at the factory and made in the U.S.A. It is intended for OMC Turbo Jet engines with OMC top mount controls that accept an OMC snap-in O.E.M. Type cable, and for Volvo engines using Top Mount BRP/OMC Controls.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX74020
• Cable Length: 20 feet
• Cable Type: Coaxial
• Minimum Bend Radius: 4 inches (XTREME Technology)
• Jacket: 0.34 inch Super Tough HDPE Jacket
• Lay Wires: 0.033 inch oil tempered
• Core: XTREME splined, coated core element
• Terminals: Stainless steel
• Fittings: Brass
• Connector Gender: Male-to-Male
• Color: Black
• Maximum Voltage: 12 Volts (DC)
• Item Shape: Round
• Weight: 2.66 pounds
• UPC: 808282276256

Fitment

• OMC Turbo Jet engines with OMC top mount controls that accept an OMC snap-in O.E.M. Type cable
• Volvo engines using Top Mount BRP/OMC Controls

Frequently Asked Questions

What engines and controls does the CCX74020 fit? The SeaStar CCX74020 fits OMC Turbo Jet engines with OMC top mount controls that accept an OMC snap-in O.E.M. Type cable, and Volvo engines using Top Mount BRP/OMC Controls.

How long is this control cable? This SeaStar Xtreme Control Cable, part number CCX74020, is 20 feet long.

What is the minimum bend radius of the CCX74020? 4 inches minimum, compared to an 8 inch minimum bend radius on SeaStar's standard 3300/33C control cables, making the CCX74020 better suited to tight or complex cable runs.

Is this a direct drop-in replacement for the OEM cable? Yes. The CCX74020 is engineered as a drop-in replacement for original equipment cables and uses the existing OEM-style connection components on applicable OMC top mount and Volvo Top Mount BRP/OMC control systems.

What materials are used in the CCX74020 cable? The cable has stainless steel terminals and brass fittings, a 0.34 inch Super Tough HDPE outer jacket, and 0.033 inch oil tempered lay wires, with an XTREME splined, coated core element.

How much does the CCX74020 weigh? The SeaStar CCX74020 control cable weighs 2.66 pounds.

Does the cable come pre-lubricated? Yes, the CCX74020 is lifetime lubricated at the factory and is made in the U.S.A.

What is the difference between the Xtreme cable and a standard control cable? The Xtreme technology used in the CCX74020 gives it a 4 inch minimum bend radius versus 8 inches on SeaStar's standard 3300/33C cables, along with a splined core for smoother movement and less lost motion.

Is the CCX74020 suitable for foot throttle applications? Yes, its tighter 4 inch bend radius makes the CCX74020 well suited to foot throttle applications on performance and bass boats as well as long or complex cable runs.

What connector type does the CCX74020 use? The CCX74020 has a male-to-male connector configuration designed to snap into OMC top mount and Volvo Top Mount BRP/OMC control heads using the existing connection components.

What color is the CCX74020 cable jacket? The outer HDPE jacket on the CCX74020 is black.

Does the CCX74020 resist corrosion and UV exposure? Yes, its stainless steel terminals and brass fittings resist corrosion, and its Super Tough HDPE jacket resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.
