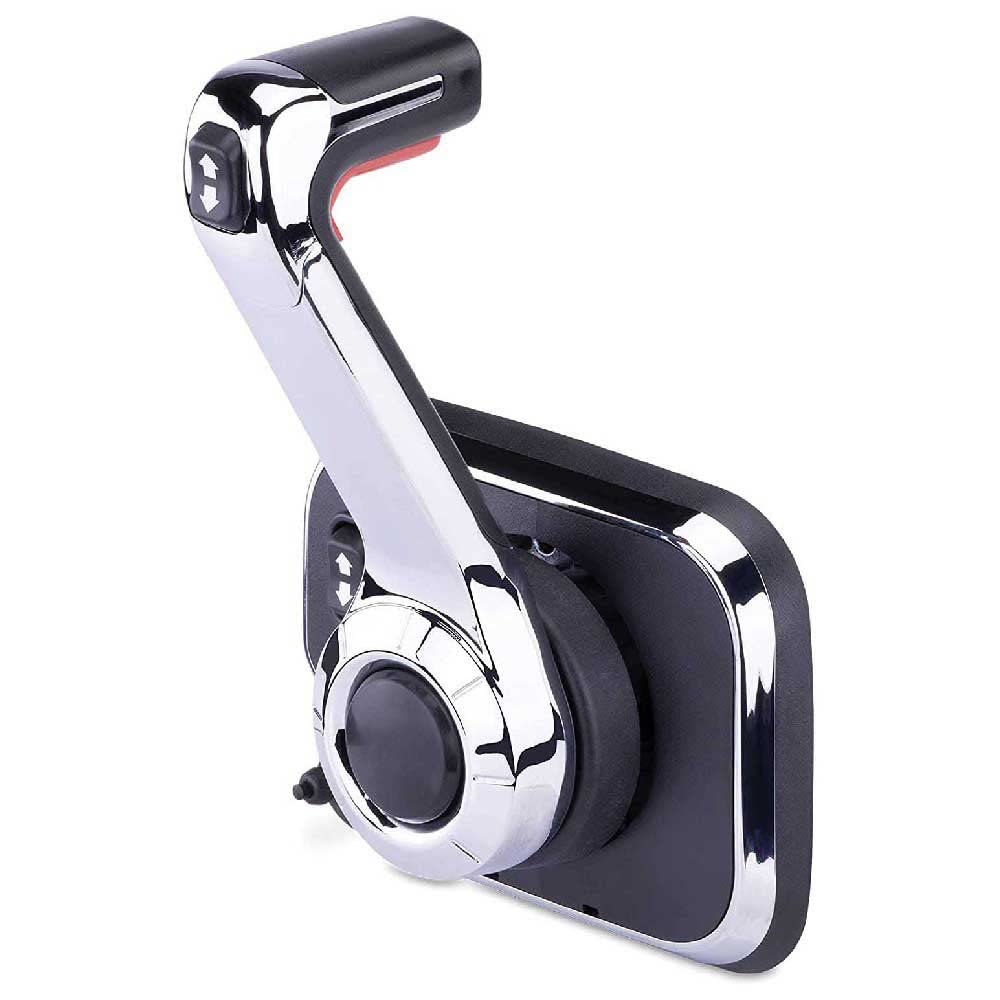

SeaStar Xtreme Side Mount Control CHX8051P, Chrome, with Engine Cut Off Switch and Trim Switch

The SeaStar Xtreme Side Mount Control, part number CHX8051P, is a chrome-finished single-engine control designed to mount at the side of the helm for direct throttle and shift command. It integrates a built-in engine cut off switch and a trim switch into the control head, letting the operator manage throttle, shift, engine kill, and trim from one console-mounted unit rather than running separate switches. The control uses push-button style switching for its integrated functions, with blade-type connectors and terminals for wiring into the boat's engine and trim circuitry. Its switch contacts are normally-open with a 1-way circuit and a single position, and the contact material is stainless steel for corrosion resistance in a marine environment. The housing carries an IP54 ingress protection rating, giving it a degree of resistance to splash and dust exposure typical of an open helm station. The chrome finish provides a polished, corrosion-resistant appearance that matches other chrome helm hardware. Overall included components are the Xtreme Side Mount Control in chrome with the engine cut off switch and trim switch built in, sized at 18.74 x 7.01 x 7.99 inches and weighing 6.44 pounds. This control is intended as a side-mount helm station solution for boaters who want engine cut off and trim functions consolidated with primary throttle and shift control.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CHX8051P
• Product Type: Side Mount Engine Control
• Mounting Type: Side Mount
• Finish: Chrome
• Contact Material: Stainless Steel
• Switch Type: Push Button
• Actuator Type: Push Button
• Connector Type: Blade
• Terminal: Blade
• Contact Type: Normally Open
• Circuit Type: 1-way
• Number of Positions: 1
• Control Type: Engine and Trim Control
• Operation Mode: Off
• Ingress Protection Rating: IP54
• Item Dimensions: 18.74 x 7.01 x 7.99 inches
• Weight: 6.44 pounds
• UPC: 808282372392
• Included Components: Xtreme Side Mount Control, Chrome with Engine cut off switch, trim switch

Frequently Asked Questions

What is the SeaStar CHX8051P? The CHX8051P is a SeaStar Xtreme Side Mount Control finished in chrome, built with an integrated engine cut off switch and trim switch so throttle, shift, kill, and trim functions are controlled from one side-mounted unit.

Does the CHX8051P include an engine cut off switch? Yes, the engine cut off switch is built into the CHX8051P control head, along with a separate trim switch, so both are operated from the same side mount control.

What are the dimensions of this control? The SeaStar Xtreme Side Mount Control CHX8051P measures 18.74 x 7.01 x 7.99 inches.

How much does the CHX8051P weigh? This control weighs 6.44 pounds.

What finish does the CHX8051P come in? It is finished in chrome, giving the housing a polished, corrosion-resistant appearance suited to helm hardware.

What type of switch contacts does the trim and cut off switch use? The integrated switches on the CHX8051P use normally-open contacts with stainless steel contact material and a 1-way, single-position circuit.

What connector type is used for wiring the CHX8051P? Wiring connections on the CHX8051P use blade-type connectors and blade terminals.

Is the CHX8051P water resistant? The CHX8051P carries an IP54 ingress protection rating, providing resistance to dust and splashing water.

Is the CHX8051P a side mount or console mount control? It is a side mount control, designed to be installed at the side of the helm rather than through a flush or top-mount console cutout.

What is included with the CHX8051P? The package includes the Xtreme Side Mount Control in chrome with the engine cut off switch and trim switch already built into the unit.

What brand makes the CHX8051P control? The CHX8051P is manufactured by SeaStar.
