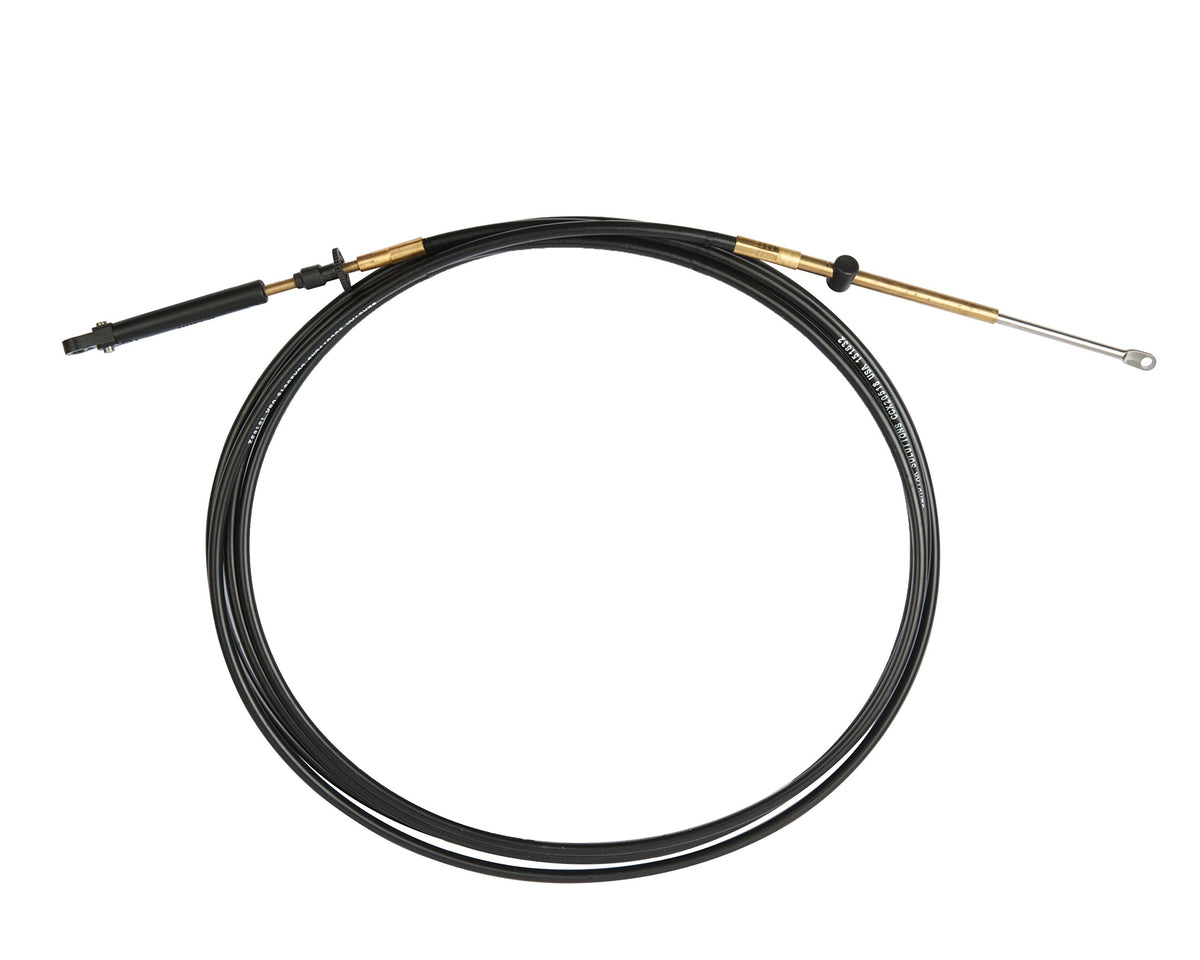

SeaStar Xtreme Control Cable CCX20506, 6-Foot, Mercury and Force Engine Connection
SeaStar Xtreme Control Cable CCX20506, 6-Foot, Mercury and Force Engine Connection
The SeaStar CCX20506 is a 6-foot Xtreme control cable built to connect a helm-side control to the engine on boats using a Mercury style engine end connection. It is engineered for controls that accept 10-32 threaded ends or most aftermarket controls, and fits Mercury products (1965-date) and Force (1993-date) applications. The cable uses SeaStar's patented Xtreme splined core, with ridges on the core that keep a close fit against the cable's inner liner for smooth movement and minimal lost motion. This design gives the cable a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs, tight engine compartments, and foot throttle setups on performance and bass boats.
Build quality centers on a 0.34 inch super tough HDPE outer jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil, over 0.033 inch oil tempered lay wires for strength and consistent performance. Stainless steel terminals and brass fittings add corrosion resistance at the connection points. The cable is lubricated for life at the factory and is made in the U.S.A. It is backed by a two-year recreational user warranty against manufacturing defects and is environmentally tested for marine use.
Specifications
- Brand: SeaStar
- Manufacturer Part Number: CCX20506
- Product Line: SeaStar Xtreme
- Cable Length: 6 feet
- Control End Connection: Accepts 10-32 threaded ends, compatible with most aftermarket controls
- Engine End Connection: Mercury style
- Engine Fitment: Mercury products (1965-date); Force (1993-date)
- Minimum Bend Radius: 4 inches
- Outer Jacket: 0.34 inch super tough HDPE jacket
- Core Wire: 0.033 inch oil tempered lay wires
- Terminals: Stainless steel
- Fittings: Brass
- Core Technology: Splined, coated Xtreme core
- Color: Black
- Material: Metal core wires with HDPE jacket, stainless steel terminals, and brass fittings
- Item Dimensions: 17 x 1.5 x 17 inches
- Weight: 1.29 pounds
- Country of Origin: Made in U.S.A.
- Warranty: Two-year recreational user warranty against manufacturing defects
Fitment
- Mercury products (1965-date)
- Force (1993-date)
- Controls that accept 10-32 threaded ends or most aftermarket controls
Replaces (OEM)
No OEM cross-reference numbers are listed for CCX20506; it is engineered to use the existing connection components on compatible Mercury and Force engine control setups.
Frequently Asked Questions
What engines does the SeaStar CCX20506 control cable fit? The CCX20506 is built with a Mercury style engine end connection and fits Mercury products (1965-date) and Force (1993-date) applications.
How long is the CCX20506 control cable? This SeaStar Xtreme control cable is 6 feet long, matching the length designation in its part number.
What kind of helm controls work with this cable? The control end of the CCX20506 accepts 10-32 threaded ends and is compatible with most aftermarket controls.
What is the minimum bend radius of the CCX20506? The Xtreme design gives this cable a 4 inch minimum bend radius, versus an 8 inch minimum bend radius for standard control cables, which helps with tight or complex cable runs.
What is the outer jacket made of on this control cable? CCX20506 uses a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.
Are there OEM cross-reference numbers for the CCX20506? No specific OEM replacement numbers are published for the CCX20506; it is designed as a drop-in cable using the existing connection components on compatible Mercury and Force setups.
What materials are used in the core of the CCX20506? The cable uses 0.033 inch oil tempered lay wires around a splined, coated Xtreme core, with stainless steel terminals and brass fittings for corrosion resistance.
Does the CCX20506 come pre-lubricated? Yes, the SeaStar Xtreme cable is lubricated for life at the factory, so no additional lubrication is needed before installation.
Where is the CCX20506 control cable made? The CCX20506 Xtreme control cable is made in the U.S.A.
What warranty covers the CCX20506? SeaStar backs the CCX20506 with a two-year recreational user warranty against manufacturing defects.
What color is the CCX20506 control cable? The CCX20506 has a black outer jacket.
Is the CCX20506 suitable for foot throttle or performance boat setups? Yes, the Xtreme construction and 4 inch minimum bend radius on the CCX20506 make it well suited to foot throttle applications and long or complex cable runs on performance boats.
