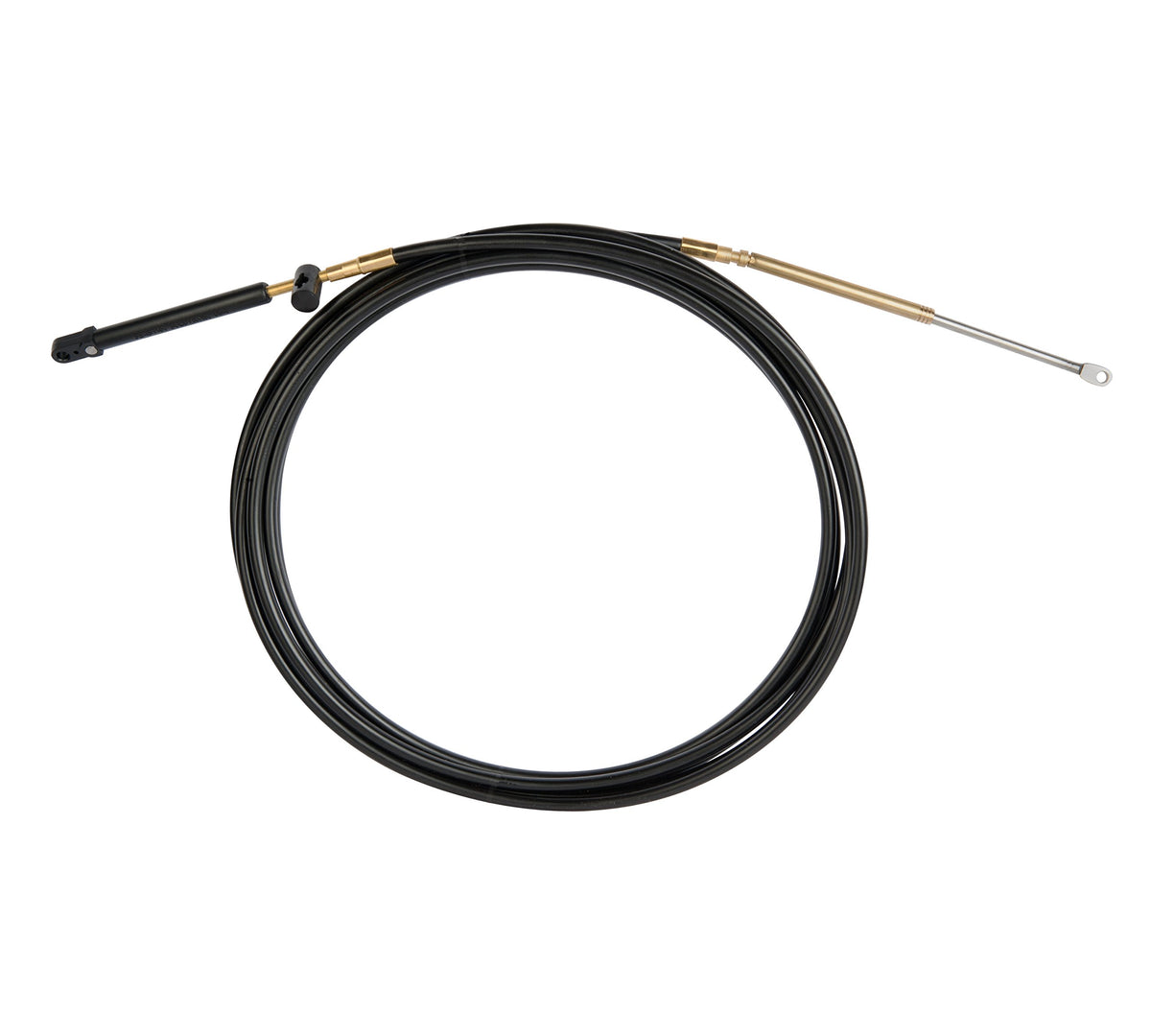

SeaStar CCX18920 Control Cable, Gen II XTREME, Mercury 4000 Series, 20 Feet

The SeaStar CCX18920 is a Gen II XTREME type control cable engineered as a direct-replacement for Mariner, Mercury, and MerCruiser engines and other engines that use Mercury 2003-date 4000 series controls. It uses SeaStar's XTREME Technology, built around a patented splined core: ridges on the core give a close fit with the cable's inner liner, allowing smooth, low-friction movement with minimal lost motion at the helm. The cable carries a 4 inch minimum bend radius, half that of a standard control cable, making it well suited to complex or long cable runs, tight engine room routing, and foot throttle applications on performance and bass boats.

Construction features a 0.34 inch Super Tough HDPE outer jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil, over 0.033 inch oil tempered lay wires for strength and consistent performance. Stainless steel terminals and brass fittings add corrosion protection at the connection points, and the cable is lubricated for life at the factory so it does not require field greasing. It is designed as a drop-in replacement that uses the existing OEM connection components, so no modification to the control head or engine end fitting is needed. The cable is made in the U.S.A. And is backed by a limited warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18920
• Cable Series: Gen II XTREME (premium)
• Cable Length: 20 feet
• Compatible Controls: Mercury 2003-date 4000 series controls
• Compatible Engines: Mariner, Mercury, MerCruiser, and other engines using Mercury 4000 series controls
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34 inch Super Tough HDPE (High-Density Polyethylene)
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals: Stainless steel
• Fittings: Brass
• Weight: 2.7 pounds
• Country of Origin: Made in U.S.A.
• Warranty: Limited recreational user warranty against manufacturing defects

Fitment

• Mariner, Mercury, and MerCruiser engines and other engines using Mercury 2003-date 4000 series controls

Frequently Asked Questions

What engines does the SeaStar CCX18920 control cable fit? The CCX18920 fits Mariner, Mercury, and MerCruiser engines and other engines that use Mercury 2003-date 4000 series controls.

How long is the CCX18920 control cable? This cable is 20 feet long, sized for the specific control run it is designed to replace.

What is the minimum bend radius of this cable? 4 inches is the minimum bend radius for the CCX18920, compared to an 8 inch minimum bend radius on a standard control cable, which helps it handle tighter routing.

Is the CCX18920 a direct replacement for my original control cable? Yes, the CCX18920 is a drop-in replacement engineered to use the existing OEM connection components at the control head and engine end.

What is the outer jacket made of? The CCX18920 uses a 0.34 inch Super Tough HDPE (High-Density Polyethylene) jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX18920 need to be greased or lubricated after installation? No, the cable is lubricated for life at the factory, so field lubrication is not required.

Is this cable good for foot throttle or performance boat applications? Yes, the tight 4 inch minimum bend radius of the CCX18920 makes it well suited to foot throttle applications on performance and bass boats as well as complex or long cable runs.

How much does the CCX18920 weigh? The CCX18920 weighs 2.7 pounds.

What are the terminals and fittings made of? The CCX18920 uses stainless steel terminals and brass fittings for added corrosion protection at the connection points.

Where is the SeaStar CCX18920 manufactured? This control cable is made in the U.S.A.

What controls is the CCX18920 compatible with? It is built to work with Mercury 2003-date 4000 series controls used on Mariner, Mercury, and MerCruiser engines.

Is the CCX18920 covered by a warranty? Yes, the CCX18920 is backed by a limited warranty against manufacturing defects for recreational use.
