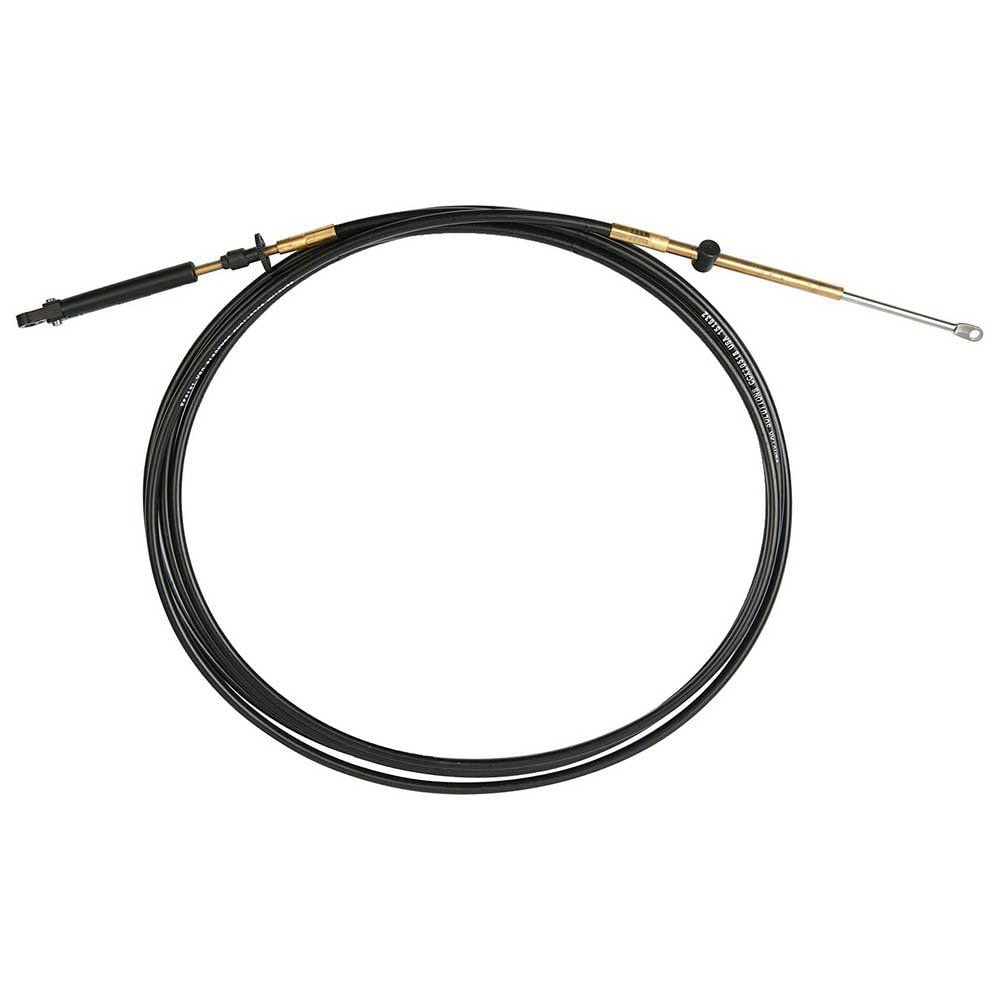

SeaStar CCX20517 Xtreme Control Cable, 17 Feet, Mercury (1965-date) and Force (1993-date)

The SeaStar CCX20517 is a 17-foot Xtreme control cable engineered as a drop-in replacement for original equipment control cables on Mercury (1965-date) and Force (1993-date) engines running aftermarket controls that accept 10-32 threaded ends, using a Mercury style engine end connection. It exceeds engine manufacturer specifications and is built around SeaStar's patented XTREME splined core, which uses ridges on the core to keep a close fit with the cable's inner liner for smooth, low-lost-motion movement at the helm.

The cable is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil, and it uses 0.033 inch oil-tempered lay wires for strength and consistent performance. Stainless steel terminals and brass fittings add corrosion protection, and the long-wearing HDPE liner is lubricated for life at the factory. The XTREME design gives this cable a 4 inch minimum bend radius versus an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs, tight engine compartments, and applications where a superior feel at the controls matters.

This control cable assembly is made in the U.S.A. And uses the existing connection components at both the control and engine ends, so no additional hardware is required for installation as a direct replacement.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20517
• Cable Length: 17 feet
• Engine Compatibility: Mercury (1965-date) and Force (1993-date) engines
• Control Compatibility: Aftermarket controls accepting 10-32 threaded ends
• Engine End Connection: Mercury style
• Weight: 1.13 pounds
• Item Dimensions: 17 x 1.5 x 17 inches
• Minimum Bend Radius: 4 inches
• Jacket Material: HDPE (High-Density Polyethylene)
• Jacket Thickness: 0.34 inches
• Core Wire: 0.033 inch oil-tempered lay wires
• Terminals: Stainless steel
• Fittings: Brass
• Core Technology: XTREME splined, coated core
• Material: Stainless steel, brass, and HDPE
• Country of Origin: Made in USA
• UPC: 808282273033
• Warranty: Two-year recreational user limited warranty against manufacturing defects

Fitment

• Mercury engines (1965-date) using aftermarket controls with 10-32 threaded ends
• Force engines (1993-date) using aftermarket controls with 10-32 threaded ends
• Mercury style engine end connection

Frequently Asked Questions

What engines does the SeaStar CCX20517 control cable fit? The CCX20517 is built for Mercury engines (1965-date) and Force engines (1993-date) that use aftermarket controls accepting 10-32 threaded ends, with a Mercury style engine end connection.

How long is this control cable? SeaStar CCX20517 is a 17-foot control cable, sized for a 17-foot cable run between the control head and the engine.

Is the CCX20517 a genuine SeaStar part or an aftermarket copy? It is a genuine SeaStar Xtreme control cable, part number CCX20517, engineered as a drop-in replacement using the existing connection components at both ends.

What makes the XTREME cable different from a standard control cable? The XTREME technology in the CCX20517 gives it a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, so it handles tighter routing and complex or long cable runs with a smoother feel.

What is the outer jacket made of? The CCX20517 uses a 0.34 inch Super Tough HDPE (high-density polyethylene) jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Does this cable need to be lubricated after installation? No. The CCX20517 is lifetime lubricated at the factory, with a long-wearing HDPE liner that is ultra smooth and lubed for life.

How much does the CCX20517 control cable weigh? The SeaStar CCX20517 weighs 1.13 pounds.

What are the terminals and fittings made of? CCX20517 uses stainless steel terminals and brass fittings for added corrosion protection, along with 0.033 inch oil-tempered lay wires for strength.

Can I use my existing control head hardware with this cable? Yes. The CCX20517 is designed as a drop-in replacement that uses the existing connection components, so no additional control head hardware is required.

Where is the CCX20517 control cable made? The SeaStar CCX20517 is made in the U.S.A.

Is the CCX20517 covered by a warranty? Yes, the CCX20517 carries a two-year recreational user warranty against manufacturing defects.

What type of engine end connection does the CCX20517 use? The CCX20517 uses a Mercury style engine end connection, matched to Mercury (1965-date) and Force (1993-date) engines.
