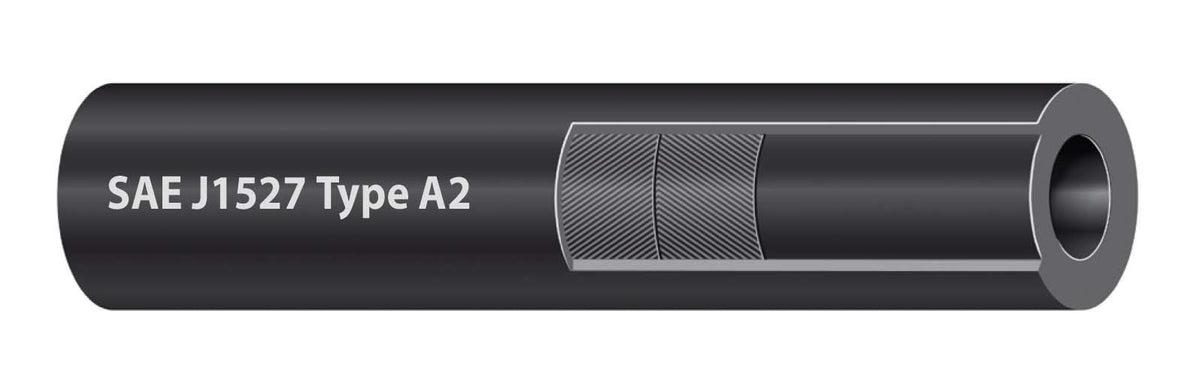

Sierra Shields Fire-Acol Fuel Vent Hose 16-369-0583, 5/8 Inch x 10 Feet, USCG Type A2

The Sierra Shields Fire-Acol Fuel Vent Hose (16-369-0583) is a 5/8 inch inside diameter marine fuel vent hose supplied in a 10 foot Polypac length. It is built to resist gasoline and alcohol blended fuels and is fire resistant, making it suited for use as a fuel vent line on gasoline engines running fuels blended up to 85% ethanol as well as diesel fuel systems. The hose features a weather and UV resistant NBR/PVC cover that protects the hose from marine environmental exposure over time.

This hose carries an inside diameter of 5/8 inch (15.9 mm) and an outside diameter of 31/32 inch (24.6 mm), with a maximum working pressure rating of 50 psi. It is rated for a temperature range of -20 degrees F to 160 degrees F. The hose meets USCG Type A2 requirements for pleasure boats, and meets SAE J1527 Type A2, ISO 7840 Type A2, and NMMA/CE Type accepted standards, confirming its suitability for fuel vent line service on recreational boats.

Because it is a vent line hose rather than a fuel feed hose, it is intended for routing fuel tank vapor rather than pressurized fuel supply. It is sold as a single 10 foot length, ready to cut to the run required for the installation.

Specifications

• Brand: Sierra
• Manufacturer Part Number: 16-369-0583
• Inside Diameter: 5/8 inch (15.9 mm)
• Outside Diameter: 31/32 inch (24.6 mm)
• Length: 10 feet
• Maximum Working Pressure: 50 psi
• Weight Class Code: C-25
• Weight: 2.76 pounds
• Material: NBR/PVC cover
• Color: Multicolored
• Temperature Range: -20 degrees F to 160 degrees F
• Standards Compliance: USCG Type A2, SAE J1527 Type A2, ISO 7840 Type A2, NMMA/CE Type accepted
• Application: Fuel vent lines for gasoline up to 85% ethanol blended fuels and diesel fuel
• Fire Resistance: Resists gasoline/alcohol blended fuel and is fire resistant

Fitment

This is a universal marine fuel vent hose sized at 5/8 inch inside diameter; no specific make, engine, or model fitment is specified.

Replaces (OEM)

No OEM cross-reference numbers are specified for this part.

Frequently Asked Questions

What is the inside diameter of the Sierra 16-369-0583 fuel vent hose? The Sierra 16-369-0583 Shields Fire-Acol Fuel Vent Hose has a 5/8 inch (15.9 mm) inside diameter and a 31/32 inch (24.6 mm) outside diameter.

How long is this hose? Part number 16-369-0583 is sold in a 10 foot length.

Is this hose fire resistant? Yes, the Shields Fire-Acol Fuel Vent Hose is fire resistant and resists gasoline/alcohol blended fuel.

What fuels is this vent hose rated for? The 16-369-0583 hose is rated for gasoline blended fuels up to 85% ethanol, as well as diesel fuel, when used as a fuel vent line.

What temperature range can this hose handle? This hose is rated for a temperature range of -20 degrees F to 160 degrees F.

What is the maximum working pressure of this hose? The maximum working pressure for the 16-369-0583 fuel vent hose is 50 psi.

What is the hose material? The 16-369-0583 hose has an NBR/PVC cover that is weather and UV resistant.

Does this hose meet marine safety standards? Yes, the Sierra Shields Fire-Acol Fuel Vent Hose meets USCG Type A2 requirements for pleasure boats, along with SAE J1527 Type A2, ISO 7840 Type A2, and NMMA/CE Type accepted standards.

Is this a fuel feed hose or a fuel vent hose? The 16-369-0583 is a fuel vent hose, designed for venting fuel tank vapor rather than supplying pressurized fuel feed.

How much does this hose weigh? The 10 foot length of the Sierra 16-369-0583 fuel vent hose weighs 2.76 pounds.

What color is this hose? The Sierra 16-369-0583 fuel vent hose is multicolored.

Is this a genuine Sierra part? Yes, part number 16-369-0583 is a genuine Sierra Shields Fire-Acol Fuel Vent Hose.
