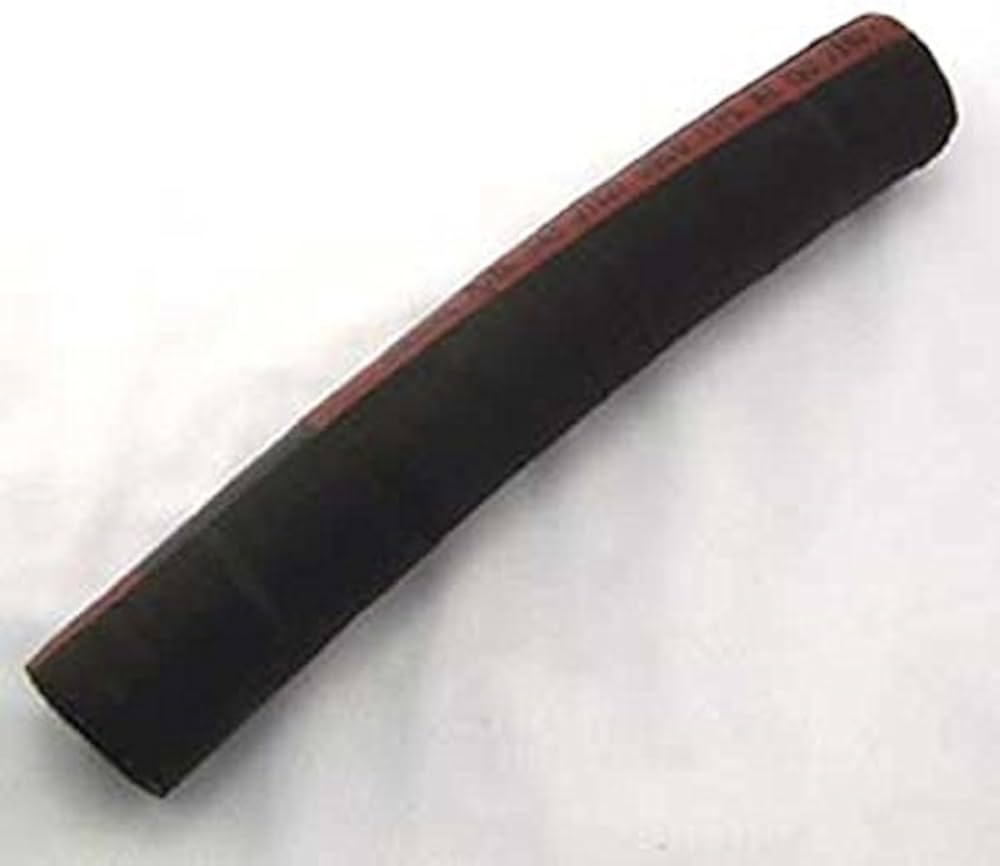

Sierra Shields Fire-Acol Fuel Fill Hose 16-350-1124, 1 1/2 Inch x 12.5 Feet, Type A2

The Sierra 16-350-1124 is a Fire-Acol "C" fuel fill hose built for pleasure boat fuel fill systems where resistance to gasoline and alcohol-blended fuels matters. It measures 1 1/2 inch inside diameter by 12.5 feet in length, sized to run from a boat's deck fill fitting to the fuel tank. The hose is compounded specifically to resist gasoline/alcohol blends and is engineered for low permeation, meaning less fuel vapor escapes through the hose wall over time. A special compound also resists cover deterioration caused by alcohol fuel sitting in the hose, a common failure point in fuel fill lines that see ethanol-blended gas.

Construction is 2-ply, reinforced with a wire helix embedded between plies of heavy-duty synthetic cord, giving the hose crush resistance while keeping it flexible enough to route through tight fill compartments. The cover is abrasion resistant to stand up to contact with surrounding structure and hardware. This hose is rated to a 90 psi burst pressure and is designed for a -5F to 180F operating temperature range. It is intended for fuel fill service with either gasoline or diesel, for pleasure boats only, and is not rated for use beyond that application.

Specifications

• Brand: Sierra
• Manufacturer Part Number: 16-350-1124
• Hose Type: Fire-Acol "C" Fuel Fill Hose, Type A2
• Inside Diameter: 1 1/2 inch (38.1 mm)
• Outside Diameter: 1 57/64 inch (48.0 mm)
• Ply: 2
• Burst Pressure: 90 psi
• Wire Helix Coil Count: 77
• Length: 12.5 feet (3.8 m)
• Weight: 19.25 pounds
• Operating Temperature Range: -5F to 180F
• Material: HD synthetic cord with embedded wire helix reinforcement, alcohol/gasoline-resistant compound
• Application: Fuel fill hose for gasoline or diesel, pleasure boats only
• UPC: 030999571885

Fitment

This is a universal fuel fill hose sized by diameter and length rather than by a specific boat make or model; confirm your existing fuel fill hose's inside diameter matches 1 1/2 inch before ordering.

Frequently Asked Questions

What size is the Sierra 16-350-1124 fuel fill hose? It measures 1 1/2 inch inside diameter by 12.5 feet in length, with a 1 57/64 inch outside diameter, making it the standard size for many pleasure boat deck fill runs.

Is this hose rated for both gasoline and diesel? Yes, the Fire-Acol Type A2 hose (Sierra 16-350-1124) is used for fuel fill service with either gasoline or diesel on pleasure boats.

Can this hose handle ethanol-blended fuel? It is compounded to resist gasoline/alcohol blends and is engineered for low permeation, and a special compound resists cover deterioration caused by alcohol fuel resting in the hose.

What is the burst pressure rating of the 16-350-1124 hose? 90 psi is the burst pressure rating for this Sierra fuel fill hose.

How is the hose reinforced? A wire helix is embedded between plies of heavy-duty synthetic cord, giving the 2-ply construction crush resistance while keeping the hose flexible for routing.

What temperature range is this fuel fill hose rated for? The Sierra 16-350-1124 hose has an operating temperature range of -5F to 180F.

How much does the 16-350-1124 hose weigh? This 12.5 foot length weighs 19.25 pounds.

Is this hose abrasion resistant? Yes, the cover is abrasion resistant, which helps it hold up where the fuel fill run contacts surrounding structure or hardware.

Is this hose approved for use on commercial vessels? No, the Fire-Acol Type A2 hose is intended for fuel fill use on pleasure boats only.

How many plies does this fuel fill hose have? The 16-350-1124 hose is built with 2 plies reinforced by an embedded wire helix.

What length does the 16-350-1124 part number cover? This part number corresponds to a 12.5 foot length of 1 1/2 inch inside diameter Fire-Acol fuel fill hose.
