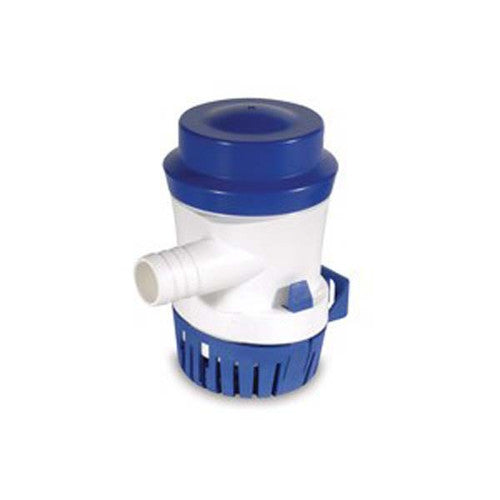

Shurflo 500 GPH 12V Submersible Bilge Pump, 3/4 Inch Outlet, Anti-Airlock

The Shurflo 355-010-10 is a 12 VDC submersible bilge pump built for continuous duty in the harsh marine environment. Rated for 500 GPH (1893 LPH) of flow, it moves water out of the bilge quickly to help keep the boat dry and safe. The pump ships with a 3 foot tinned wire assembly for above-waterline wiring connections, and its water cooled motor is designed for extended working life under sustained use.

Anti-airlock construction keeps the pump primed and running without interruption, while the tough nylon housing resists the corrosion and wear of a marine bilge environment. A quick-disconnect base plate lets the pump body be lifted off its mount for cleaning or service without disturbing the wiring or through-hull plumbing, so installation and maintenance stay quick and simple. The pump is ignition protected, ISO 8846 approved, and CE listed for safe operation aboard gasoline-powered boats.

Specifications

• Brand: Shurflo
• Manufacturer Part Number: 355-010-10
• Type: Bilge Pump
• Voltage: 12 VDC
• Flow Rate: 500 GPH (1893 LPH)
• Port Size (Outlet): 3/4 inch (19 mm)
• Dimensions: 4-1/2 inches x 3 inches
• Round Foot Print: 2-3/8 inches (86 mm)
• Amperage Draw (Max): 1.8 Amps
• Fuse Rating: 2.5 Amps
• Wire Assembly Length: 3 feet
• Housing Material: Nylon
• Impeller Material: Nylon
• Hardware: Stainless Steel
• Weight: 1.0625 pounds
• Certifications: Ignition Protected, ISO 8846 Approved, CE Listed
• Duty Cycle: Continuous
• Motor Cooling: Water Cooled
• UPC: 752324010080

Frequently Asked Questions

What is the flow rate of the Shurflo 355-010-10 bilge pump? The Shurflo 355-010-10 is rated to move 500 GPH (1893 LPH) of water.

What voltage does the Shurflo 355-010-10 bilge pump use? It runs on a 12 VDC electrical system, drawing up to 1.8 Amps and protected by a 2.5 Amp fuse.

Is the Shurflo 355-010-10 submersible? Yes, the 355-010-10 is a continuous duty, fully submersible bilge pump designed for below-waterline installation.

What size is the outlet port on this pump? The outlet port measures 3/4 inch (19 mm), matching standard bilge hose fittings.

How is the Shurflo 355-010-10 wired for installation? It comes with a 3 foot tinned wire assembly intended for above-waterline wiring connections.

Does the 355-010-10 prevent airlock during operation? Yes, anti-airlock construction keeps the pump primed so it continues running without losing suction.

What is the pump housing made of? The 355-010-10 uses a tough nylon housing, with a nylon impeller and stainless steel hardware for corrosion resistance.

How much does the Shurflo 355-010-10 weigh? The pump weighs 1.0625 pounds.

What are the physical dimensions of the pump? The Shurflo 355-010-10 measures 4-1/2 inches by 3 inches with a round foot print of 2-3/8 inches (86 mm).

What certifications does the 355-010-10 carry? It is ignition protected, ISO 8846 approved, and CE listed for marine use.

Does the pump have a quick-disconnect base for maintenance? Yes, the 355-010-10 uses a quick-disconnect base plate so the pump body can be removed for service without disturbing the mounting or wiring.

How does the 355-010-10 compare to Shurflo's 700 GPH bilge pump? The 355-010-10 moves 500 GPH at up to 1.8 Amps, while Shurflo's higher-capacity 700 GPH pump draws up to 3.2 Amps for greater flow in larger bilges.
