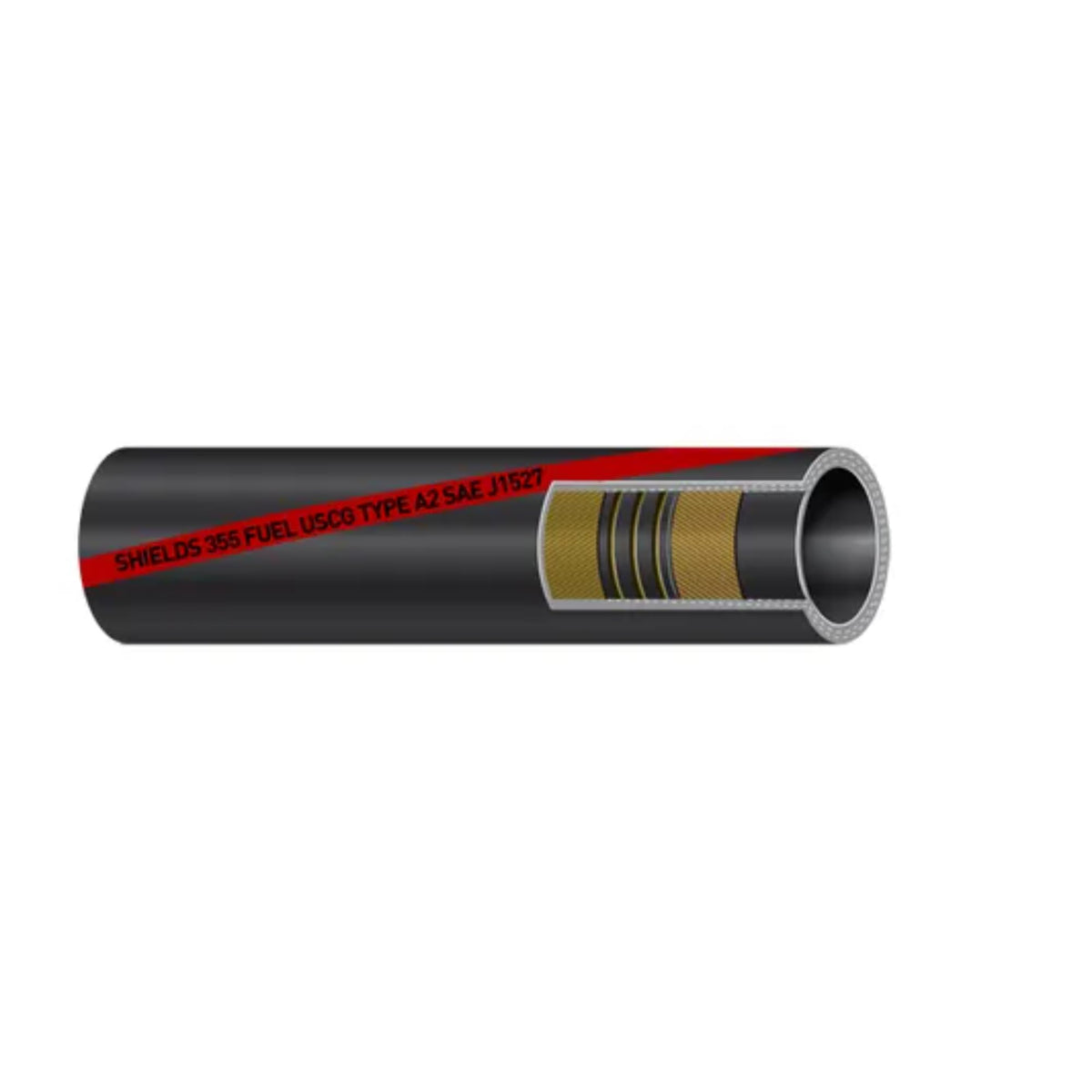

Sierra 16-355-1123 Fuel Fill Hose, 1-1/2 Inch x 10 Feet, Type A2 Low-Permeation

The Sierra 16-355-1123 is a 1-1/2 inch fuel fill hose built for pleasure boats, sized at 10 feet in length. It is engineered to resist gasoline/alcohol (ethanol) blends and is compounded specifically for low permeation, so vapor loss through the hose wall stays minimal over the life of the boat. The hose is abrasion resistant and is reinforced with a wire helix imbedded between plies of heavy-duty synthetic cord, giving it the structural integrity to hold its shape under vacuum during fueling while resisting kinking and collapse.

This hose is used for the fuel fill run (gas or diesel) between the deck fill fitting and the fuel tank, and it is rated for pleasure boat use only, not for portable tanks or non-marine applications. It meets SAE J1527 Type A2 and ISO 7840 Type A2 standards and carries NMMA/CE Type Accepted status, confirming it is built to recognized marine fuel-system safety standards. With a 2-ply synthetic construction, a 1-57/64 inch outside diameter, and a 90 psi burst rating, it is sized to handle standard fuel-fill plumbing on boats using 1-1/2 inch fill hose. The same hose diameter is also offered by Sierra in a 10 foot carton-packed version (16-355-1123BX) and in other stock lengths, so buyers replacing a full run or building out fuel-fill plumbing can match the length they need.

Specifications

• Brand: Sierra
• Manufacturer Part Number: 16-355-1123
• Product Type: Fuel Fill Hose
• Inside Diameter: 1-1/2 inches (38.1 mm)
• Outside Diameter: 1-57/64 inches (48.0 mm)
• Ply: 2
• Burst Pressure: 90 psi
• Length: 10 feet
• Wall Thickness: 0.25 inches
• Material: Synthetic, HD synthetic cord reinforced with imbedded wire helix
• Color: Black
• Weight: 7.7 pounds
• Standards: SAE J1527 Type A2, ISO 7840 Type A2, NMMA/CE Type Accepted
• Application: Fuel fill hose for gasoline or diesel, pleasure boats only
• UPC: 808282199951

Frequently Asked Questions

What size is the Sierra 16-355-1123 fuel fill hose? It has a 1-1/2 inch inside diameter (38.1 mm) and a 1-57/64 inch outside diameter (48.0 mm), and it is cut to a 10 foot length.

Is this hose rated for both gasoline and diesel? Yes, the 16-355-1123 fuel fill hose is used for fuel fill service with either gas or diesel and is intended for pleasure boats only.

Does this hose handle ethanol-blended fuel? It resists gasoline/alcohol blends and is compounded for low permeation, so it is built to handle ethanol-blended pump gas without excessive vapor loss.

What safety standards does the 16-355-1123 meet? This hose meets SAE J1527 Type A2 and ISO 7840 Type A2 standards and carries NMMA/CE Type Accepted status.

What is the hose construction made of? The 16-355-1123 is a 2-ply synthetic hose reinforced with a wire helix imbedded between plies of heavy-duty synthetic cord, and it is finished in black.

What is the burst pressure rating? The hose carries a 90 psi burst pressure rating at its 1-1/2 inch size.

How much does this fuel fill hose weigh? The 10 foot length of Sierra 16-355-1123 weighs 7.7 pounds.

Is this hose abrasion resistant? Yes, the 16-355-1123 is abrasion resistant, which helps it hold up where it runs against hull structure or other components in the fill line.

What is the difference between 16-355-1123 and 16-355-1123BX? Both are the same 1-1/2 inch, 10 foot fuel fill hose; 16-355-1123BX is the carton-packaged version of the identical hose, while 16-355-1123 is the standard stock code for the same length.

Can this hose be used on a portable fuel tank? No, the 16-355-1123 fuel fill hose is intended for pleasure boat fuel fill installations, not portable tank applications.

What wall thickness does the hose have? The 16-355-1123 has a nominal wall thickness of 0.25 inches.

Where is this hose used on a boat? It is installed as the fuel fill run connecting the deck fill fitting to the fuel tank on pleasure boats.
