Sierra 18-3075 Neoprene Impeller Kit, Replaces Jabsco 22405-0001, for Volvo Penta Stern Drive

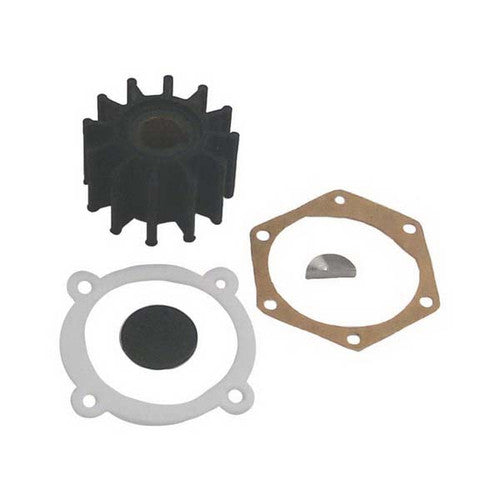

The Sierra 18-3075 is a neoprene impeller kit built to restore raw water flow in Volvo Penta stern drive cooling systems. The kit includes the impeller and gaskets needed to complete a water pump rebuild in a single service, saving a trip back to the parts counter for a missing seal.

The impeller itself is molded from neoprene, a synthetic rubber compound chosen for its resistance to heat, wear, and marine fuel and oil exposure, and it is rated for salt water use. It measures 2 1/4 inches (57.2mm) in diameter and 1 1/4 inches (31.8mm) in width, with 12 fins driving water through the pump housing on each rotation. The neoprene compound flexes to seal against the pump housing while resisting the set and premature cracking that lower-grade rubber impellers develop after repeated dry-running or storage.

This kit is intended for Volvo Penta stern drive units and directly replaces the Jabsco 22405-0001 impeller, so it drops into the same water pump housing without modification.

Specifications

• Brand: Sierra
• Manufacturer Part Number: 18-3075
• Includes: Impeller and Gaskets
• Material: Neoprene
• Color: White
• Diameter: 2 1/4 inches (57.2mm)
• Width: 1 1/4 inches (31.8mm)
• Fins: 12
• Weight: 0.4 pounds
• UPC: 030999315274
• Recommended Use: Salt water

Fitment

• Volvo Penta stern drive units

Replaces (OEM)

• Jabsco 22405-0001

Frequently Asked Questions

What does the Sierra 18-3075 impeller kit include? The Sierra 18-3075 kit includes the neoprene impeller along with the gaskets needed to reinstall it, so both wear parts are replaced in one service.

What boats or drives does the Sierra 18-3075 fit? This impeller kit is designed for Volvo Penta stern drive units.

Is the Sierra 18-3075 a direct replacement for the Jabsco 22405-0001? Yes, the Sierra 18-3075 replaces the Jabsco 22405-0001 impeller and is built to the same fit and function for the water pump housing it services.

What material is the impeller made from? The impeller in kit 18-3075 is molded neoprene, a synthetic rubber chosen for its resistance to heat and wear in raw water cooling pumps.

What size is the 18-3075 impeller? It measures 2 1/4 inches (57.2mm) in diameter and 1 1/4 inches (31.8mm) in width, with 12 fins.

Is the 18-3075 impeller rated for salt water use? Yes, the Sierra 18-3075 neoprene impeller is recommended for salt water use.

How much does the Sierra 18-3075 impeller kit weigh? The Sierra 18-3075 impeller kit weighs 0.4 pounds.

How many fins does the 18-3075 impeller have? It has 12 fins, which move raw water through the pump housing as the impeller rotates.

Does the Sierra 18-3075 come with gaskets? Yes, gaskets are included with the impeller in the 18-3075 kit, so no separate gasket purchase is needed for the rebuild.

What color is the Sierra 18-3075 impeller? The impeller in the Sierra 18-3075 kit is white.

Is Sierra 18-3075 a genuine Sierra part or an aftermarket copy? The 18-3075 is a Sierra-branded impeller kit manufactured as a replacement for the Jabsco 22405-0001, not a copy of another aftermarket brand's kit.
