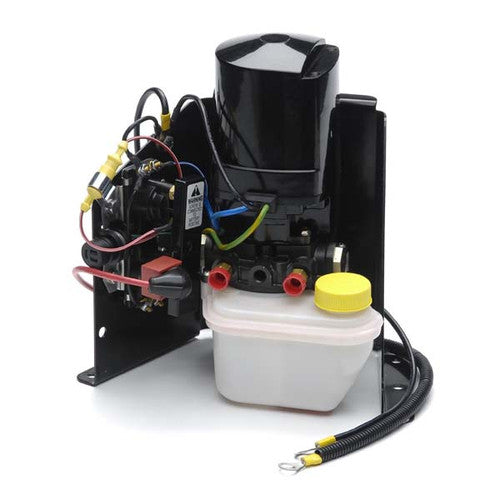

Sierra 18-6752 Hydraulic Trim Pump Assembly, Metal Bracket, Replaces MerCruiser 14336A9, Fits 1983 and Later Without Quick Connect

The Sierra 18-6752 is a complete hydraulic trim pump assembly built for MerCruiser stern drives that use a low pressure, high flow trim system. It is designed as a full replacement unit, mounted on a metal bracket, and is engineered for boaters replacing a failed or worn trim pump rather than rebuilding individual internal components. The assembly is rated for use with a 20 amp fuse and is set up to pair with the Sierra 18-6772 tilt pump motor, which serves as the replacement motor for this unit. Low pressure, high flow hydraulic operation is matched to the demands of raising and lowering the drive unit and trim tabs on applicable stern drives, giving consistent trim response without the higher pressure requirements of quick connect style systems.

This pump assembly is intended for MerCruiser stern drives built 1983 and later that do not use a quick connect fitting, so it is important to confirm your drive's connection style before ordering. Because it ships as a complete assembly on its own metal bracket, installation follows the same mounting pattern as the original equipment pump it replaces, and it cross-references directly to a long list of MerCruiser stern drive trim pump part numbers.

Specifications

• Brand: Sierra
• Manufacturer Part Number: 18-6752
• Product Type: Hydraulic Trim Pump Assembly
• Pressure and Flow: Low Pressure - High Flow
• Bracket Material: Metal
• Fuse Rating: 20 amp fuse
• Replacement Motor: Sierra 18-6772
• Fitment: MerCruiser stern drives, 1983 and Later, without quick connect
• Weight: 13.21 pounds
• Dimensions: 12 x 10.25 x 8.5 inches
• Material: Metal
• Color: White
• Mounting Type: Wall Mount
• UPC: 808282286439

Fitment

• MerCruiser stern drives, 1983 and Later, without quick connect

Replaces (OEM)

• 14336A9
• 88183A12
• 96477A3
• 88183A11
• 88183A6
• 14336A28
• 14336A22
• 14336A17
• 14336A15
• 14336A6

Frequently Asked Questions

What does the Sierra 18-6752 fit? The Sierra 18-6752 hydraulic trim pump assembly fits MerCruiser stern drives built 1983 and later that do not use a quick connect fitting.

Is the 18-6752 a complete pump assembly or just internal parts? It is a complete hydraulic trim pump assembly mounted on its own metal bracket, ready to install as a full replacement unit rather than a rebuild kit.

Which OEM part numbers does the 18-6752 replace? The Sierra 18-6752 replaces MerCruiser part numbers 14336A9, 88183A12, 96477A3, 88183A11, 88183A6, 14336A28, 14336A22, 14336A17, 14336A15, and 14336A6.

Does the 18-6752 include a motor? The pump assembly itself does not include a separate listed motor part; Sierra pairs it with the 18-6772 tilt pump motor as the designated replacement motor for this system.

What fuse does the trim system use with this pump? The Sierra 18-6752 hydraulic trim pump assembly is set up for use with a 20 amp fuse.

Is this a low pressure or high pressure trim pump? It is a low pressure, high flow hydraulic trim pump assembly, matched to trim systems that do not use quick connect fittings.

What material is the mounting bracket made of? The 18-6752 uses a metal bracket for mounting the hydraulic trim pump assembly.

What are the dimensions and weight of the 18-6752? The Sierra 18-6752 measures 12 x 10.25 x 8.5 inches and weighs 13.21 pounds.

How do I know if my MerCruiser stern drive uses a quick connect system? The 18-6752 is built specifically for MerCruiser stern drives from 1983 and later without a quick connect fitting, so checking your existing trim pump connection type before ordering will confirm compatibility.

Is the Sierra 18-6752 a genuine Sierra part or a generic aftermarket unit? The 18-6752 is manufactured by Sierra as a direct replacement hydraulic trim pump assembly, engineered to meet or exceed the specifications of the original MerCruiser part numbers it replaces.

What color is the 18-6752 trim pump assembly? The Sierra 18-6752 hydraulic trim pump assembly is white.

Can I use the 18-6752 with any trim motor? Sierra designates the 18-6772 as the replacement motor for the 18-6752 hydraulic trim pump assembly.
