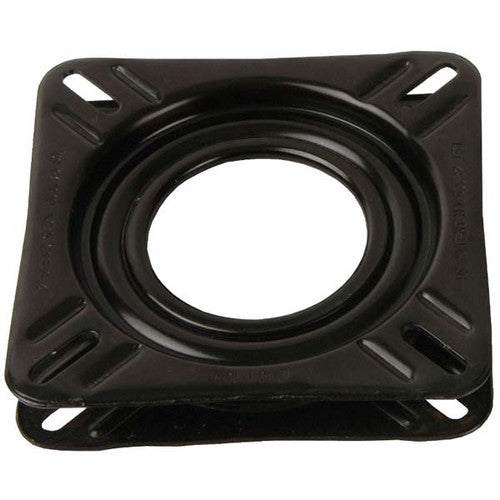

Springfield 1100007 Pro-Tilt Seat Swivel, 6-3/4 Inch Square 4-Hole Mount, 360-Degree Rotation

The Springfield 1100007 Pro-Tilt Seat Swivel is a flat, non-locking swivel mount designed to attach beneath a boat seat to provide full rotational movement at the helm, console, or fishing station. The base measures 6-3/4 inches square and uses a standard 4-hole mounting pattern, allowing it to line up with common seat pedestal and base hardware. The swivel mechanism is a 0-degree design, meaning it rotates flat without tilting, and it turns a full 360 degrees so the seat can be spun freely in either direction without a locking detent holding it in place at set positions. It is offered in a choice of stainless steel or e-coat finish, giving buyers a corrosion-resistant option suited to a marine environment. The unit carries an ABYC Class H-31 rating for fishing seat applications. At an overall size of 6-3/4 inches square by 1-1/8 inches in height, it is built to sit low profile under a seat pan. This swivel is manufactured in the USA and works as a direct mounting solution for boat owners replacing a worn or locked seat swivel with a smooth-turning, non-locking alternative.

Specifications

• Brand: Springfield
• Manufacturer Part Number: 1100007
• Mounting Pattern: 4-hole
• Base Dimensions: 6-3/4 inches square
• Height: 1-1/8 inches
• Rotation: 360 degrees
• Tilt Angle: 0-degree, non-locking swivel
• Finish Options: Stainless steel or e-coat
• ABYC Classification: H-31 (Fishing Only)
• Weight: 2.4 pounds
• UPC: 038132190078
• Country of Origin: Made in the USA

Frequently Asked Questions

What is the mounting pattern on the Springfield 1100007 seat swivel? The Springfield 1100007 uses a standard 4-hole mounting pattern on a 6-3/4 inch square base.

Does this swivel lock in place? No, the Springfield 1100007 is a 0-degree non-locking design, so it rotates freely rather than holding a fixed position.

How far does the seat rotate with this swivel installed? It provides a full 360-degree rotation, allowing the seat to turn completely in either direction.

What finishes are available for part number 1100007? Springfield offers this seat swivel in either a stainless steel or e-coat finish.

What are the overall dimensions of the 1100007 swivel? It measures 6-3/4 inches square by 1-1/8 inches in height.

How much does the Springfield 1100007 weigh? This seat swivel weighs 2.4 pounds.

Is the Springfield 1100007 rated for fishing seats? Yes, it carries an ABYC Class H-31 rating, which covers fishing-only seating applications.

Where is the Springfield 1100007 manufactured? The 1100007 seat swivel is made in the USA.

Will this swivel tilt the seat forward or back? No, the 1100007 is a flat 0-degree swivel with no tilt function, it only rotates.

What is the UPC for this part? The Springfield 1100007 seat swivel carries UPC 038132190078.

Is this a good replacement for a locking swivel that has seized up? The Springfield 1100007 is a non-locking flat swivel, so it is suited for boat owners who want continuous free rotation rather than a locking mechanism.
