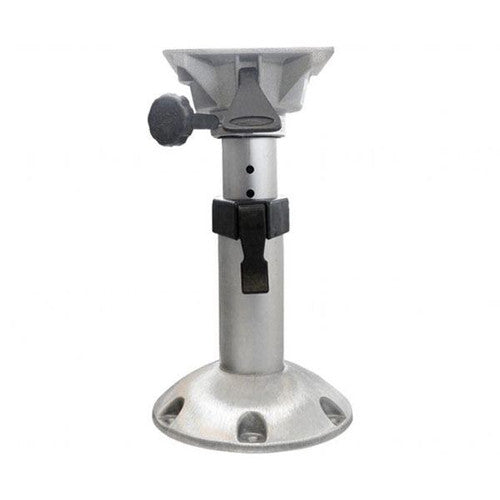

Springfield Explorer Adjustable Pedestal, 2-3/8 Inch Post, 13-5/8 to 16-5/8 Inches, Locking Trac-Lock Swivel

The Springfield Explorer Adjustable Pedestal is a boat seat pedestal built around a 2-3/8 inch locking post and a 9 inch round base, designed to let boaters set their seat height to their exact preference rather than being locked into a single fixed position. The pedestal manually adjusts from 13-5/8 inches to 16-5/8 inches in 1 inch increments, so the seat can be raised or lowered to suit different helm positions, driver heights, or seating preferences aboard the boat. Once a height is selected, the locking mechanism holds the post firmly in place during operation.

The post is anodized and the base has a satin finish, giving the pedestal corrosion resistance and a clean, consistent look that matches other Springfield seating hardware. A locking Trac-Lock swivel is included, allowing the seat to rotate and then be locked in a fixed orientation when needed, which is useful for helm seating or any position where the seat should stay put while underway. The round 9 inch base provides a broad, stable mounting footprint for the pedestal.

This pedestal is intended for boat seating applications where an adjustable-height, swiveling pedestal is needed, and it pairs with a compatible seat base and deck mount.

Specifications

• Brand: Springfield
• Manufacturer Part Number: 1253032-L1
• Category: Seat Pedestal
• Adjustable Height Range: 13-5/8 inches to 16-5/8 inches
• Height Adjustment Increment: 1 inch
• Post Diameter: 2-3/8 inches
• Base Shape: Round
• Base Diameter: 9 inches
• Post Finish: Anodized
• Base Finish: Satin
• Swivel: Locking Trac-Lock swivel
• Locking Mechanism: Locking pedestal post
• Product Dimensions: 15 x 9.76 x 9.76 inches
• Weight: 7.6 pounds
• UPC: 038132978270

Frequently Asked Questions

What height range does the Springfield 1253032-L1 pedestal adjust to? The Springfield Explorer Adjustable Pedestal (1253032-L1) manually adjusts from 13-5/8 inches to 16-5/8 inches, in 1 inch increments.

How is the height adjusted on this pedestal? Height is adjusted manually in 1 inch increments across the full 13-5/8 inch to 16-5/8 inch range, and the post locks in place once the desired height is set.

Does this pedestal swivel? Yes, the 1253032-L1 includes a locking Trac-Lock swivel, so the seat can rotate and then be locked in a fixed orientation when needed.

What size is the mounting post? The post on this Springfield pedestal is 2-3/8 inches in diameter.

What size is the base? The Explorer Adjustable Pedestal has a 9 inch round base.

How much does this pedestal weigh? The Springfield 1253032-L1 pedestal weighs 7.6 pounds.

What are the overall dimensions of the pedestal? Product dimensions for the 1253032-L1 are 15 x 9.76 x 9.76 inches.

What finish does the post and base have? The post on this Springfield pedestal is anodized and the base has a satin finish.

Is the seat locked in place at each height setting? Yes, the 1253032-L1 is a locking pedestal, so once a height between 13-5/8 inches and 16-5/8 inches is selected, it locks in place.

Does this pedestal include the seat or base plate? The 1253032-L1 is the adjustable pedestal itself, including its locking Trac-Lock swivel; it is designed to be paired with a compatible seat and deck mounting hardware.

What is the manufacturer part number for this pedestal? This Springfield adjustable pedestal is identified by part number 1253032-L1.
