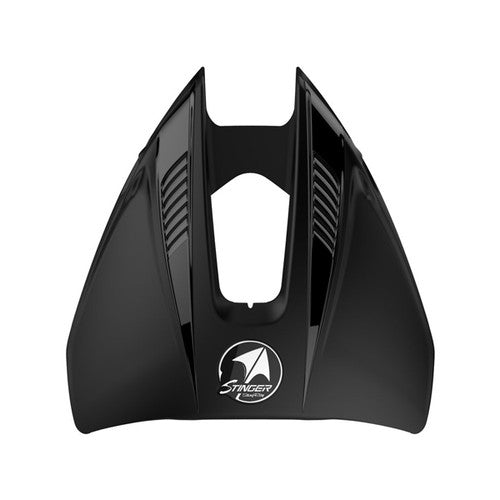

Stingray Stinger Hydrofoil STINGER-1 - Black Stabilizer Fin for 4-300 HP Outboard/Outdrive Engines

The Stingray Stinger Hydrofoil (STINGER-1) is a bolt-on stabilizer fin engineered to mount to the anti-cavitation plate of outboard and outdrive (I/O) motors. It is built to work across a wide 4 to 300 horsepower range, giving smaller boats and engine setups a significant lift while helping larger boats and engine setups achieve improved holeshots and maximum top-end speed.

The delta-wing design reduces chinewalking, porpoising, cavitation, and ventilation, which helps the boat get on plane quicker, saves fuel, and reduces strain on the engine. By increasing visibility at lower speeds and keeping the boat stable and on plane at reduced speeds, the Stinger Hydrofoil promotes safer handling in a range of conditions.

Installation is straightforward: boats under 40 hp use a simple 2-drill mounting method, while boats above 40 hp can use an easy no-drill installation. All mounting hardware and instructions are included. The hydrofoil is finished in black and is made in the USA.

Specifications

• Brand: Stingray Hydrofoils
• Manufacturer Part Number: STINGER-1
• Color: Black
• Style: Delta-Wing
• Application/HP Fit: 4-300 hp outboard/outdrive engines
• Installation: 2-drill installation for engines under 40 hp; no-drill installation for engines 40 hp and above
• Item Dimensions: 17.25 x 15.5 x 2 inches
• Weight: 2.25 pounds
• Included Components: Stabilizer
• Warranty: One Year Warranty
• UPC: 096144001416
• Country of Origin: Made in the USA

Fitment

• Outboard and outdrive engines from 4 hp to 300 hp
• Engines under 40 hp require drilled mounting; engines 40 hp and above can use no-drill mounting

Frequently Asked Questions

What engines does the Stingray Stinger Hydrofoil fit? The Stingray Stinger Hydrofoil (STINGER-1) fits outboard and outdrive engines ranging from 4 hp to 300 hp.

Does the Stinger Hydrofoil require drilling to install? It depends on engine size: engines under 40 hp require a simple 2-drill installation, while engines 40 hp and above can use an easy no-drill installation method.

What does the Stinger Hydrofoil do for a boat's performance? It provides lift to stabilize the boat on plane, reduces chinewalking, porpoising, cavitation, and ventilation, improves holeshots, saves fuel, and increases visibility at lower speeds for the STINGER-1 hydrofoil.

What color is the STINGER-1 hydrofoil? The Stingray Stinger Hydrofoil is finished in black.

How much does the Stinger Hydrofoil weigh? The STINGER-1 hydrofoil weighs 2.25 pounds.

What are the dimensions of the Stinger Hydrofoil? The Stingray Stinger Hydrofoil measures 17.25 x 15.5 x 2 inches.

Is mounting hardware included with the Stinger Hydrofoil? Yes, the STINGER-1 hydrofoil ships as a complete stabilizer with the hardware and instructions needed for installation.

Where is the Stingray Stinger Hydrofoil made? The STINGER-1 hydrofoil is made in the USA.

What warranty comes with the Stinger Hydrofoil? The Stingray Stinger Hydrofoil is backed by a one year warranty.

How is the Stinger Hydrofoil different from the Stingray Starfire Hydrofoil? The Stinger (STINGER-1) covers a broader 4-300 hp application range and uses drilled installation for engines under 40 hp, while the Starfire is fit for 40-300 hp engines with no-drill or optional-drill installation.

Does the Stinger Hydrofoil help with chinewalking? Yes, the STINGER-1 hydrofoil is designed to reduce chinewalking along with porpoising, cavitation, and ventilation.
