T-H Marine CMC PT-130 Electric Hydraulic Tilt and Trim for Outboard Motors up to 130 HP

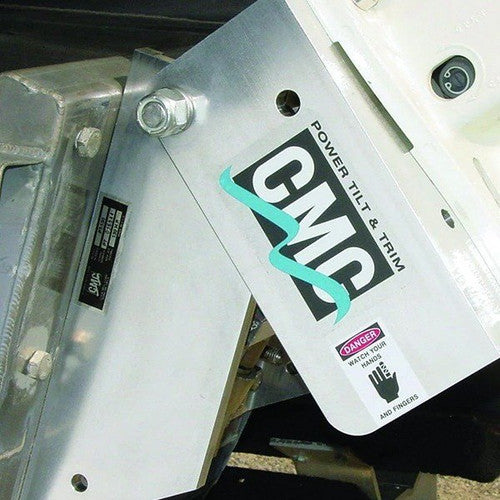

The T-H Marine CMC PT-130 is an electric hydraulic tilt and trim unit built for outboard motors up to 130 HP. It is constructed from 1/2 inch 6061 T6 extruded aluminum with stainless steel hardware for corrosion resistance in marine environments, and it mounts using the standard B.I.A. Bolt hole pattern with the included hardware for a straightforward installation. The PT-130 provides a 6 inch set back, which lets the outboard sit further from the transom and be mounted higher than a transom-mounted motor, while delivering 20 degrees of trim and 90 degrees of tilt. The electric hydraulic actuator is rated at 7853 pounds of thrust. Each unit ships complete with the hydraulic PT-130 unit, a wire assembly, an up-down toggle switch, and stainless steel mounting hardware. For boats and motors that are not pre-drilled to the B.I.A. Pattern, some drilling may be required, and installation involves supporting the motor with a properly rated lifting device, removing the motor's existing transom mounting nuts, mounting the PT-130 to the transom with clearance for full tilt, and reattaching the motor using the original nuts with flat and lock washers. Motors with transom clamps that tighten inside the splash well require a separate T-H Marine CMC transom clamp adapter (sold separately) to fit the PT-130.

Specifications

• Brand: T-H Marine CMC
• Manufacturer Part Number: 13002
• Power Rating: Up to 130 HP
• Set Back: 6 inches
• Trim Angle: 20 degrees
• Tilt Angle: 90 degrees
• Actuator Type: Electric hydraulic
• Thrust Rating: 7853 pounds of thrust
• Material: 1/2 inch 6061 T6 extruded aluminum
• Hardware: Stainless steel
• Bolt Hole Pattern: Standard B.I.A.
• Weight: 43 pounds
• Package Dimensions: 19.5 x 14.5 x 6.5 inches
• UPC: 130021300200
• Includes: Hydraulic PT-130 unit, wire assembly, up-down toggle switch, stainless steel mounting hardware

Fitment

Designed for outboard motors up to 130 HP with the standard B.I.A. Outboard mounting hole configuration. Motors with transom clamps that tighten inside the splash well require the separate T-H Marine CMC transom clamp adapter to mount to the PT-130.

Frequently Asked Questions

What horsepower range does the CMC PT-130 support? The T-H Marine CMC PT-130 is designed for outboard motors up to 130 HP and smaller.

How much set back does the PT-130 provide? It provides a 6 inch set back, positioning the outboard further from the transom so it can be mounted higher than a transom-mounted motor.

What is the tilt and trim range on the PT-130? The unit offers 20 degrees of trim and 90 degrees of tilt.

What is the thrust rating of the PT-130's actuator? The electric hydraulic actuator on part number 13002 is rated at 7853 pounds of thrust.

What is the PT-130 made of? The PT-130 is constructed from 1/2 inch 6061 T6 extruded aluminum with stainless steel hardware for corrosion resistance in marine environments.

Does the PT-130 fit standard outboard motor mounting holes? Yes, it is predrilled to fit the standard B.I.A. Outboard motor mounting hole configuration; if your boat and motor are not pre-drilled, some drilling may be required.

What comes included with the CMC PT-130? Each PT-130 unit ships with the hydraulic PT-130 unit itself, a wire assembly, an up-down toggle switch, and stainless steel mounting hardware.

Will the PT-130 work with an outboard that has transom clamps? Motors with clamps that tighten inside the splash well need the separate T-H Marine CMC transom clamp adapter to fit the PT-130; it is not included with part number 13002.

How is the PT-130 installed? Installation involves supporting the motor with a properly rated lifting device, removing the four nuts mounting the motor to the transom, mounting the PT-130 to the transom with clearance for full tilt, and reattaching the motor using the original nuts along with flat and lock washers.

How much does the CMC PT-130 weigh? The T-H Marine CMC PT-130 (part number 13002) weighs 43 pounds.

What are the package dimensions of the PT-130? The PT-130 ships in a package measuring 19.5 x 14.5 x 6.5 inches.

Is the PT-130 an electric or manual tilt and trim unit? It is an electric hydraulic tilt and trim unit, operated with the included up-down toggle switch.
