T-H Marine Hydraulic Jack Plate Position Gauge Kit for CMC Power Lift and Hydro-Jacker Models

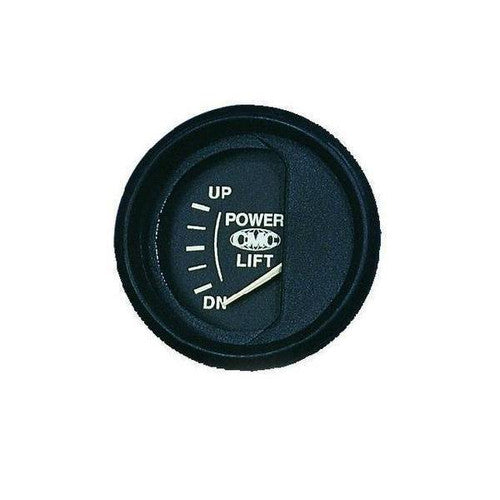

The T-H Marine Hydraulic Jack Plate Position Gauge Kit is a dash-mounted position indicator system that lets you see exactly where your jack plate is set without leaving the helm. It is built to fit all CMC Power Lift Hydraulic Jack Plate models and all T-H Marine Hydro-Jacker Hydraulic Jack Plate models, giving boaters a safe and convenient way to determine jack plate height at a glance instead of guessing or looking over the transom.

The gauge itself is sealed and drip-proof, designed to mount directly in the dash using a standard 2 inch gauge cutout, so it fits cleanly alongside other dash instrumentation. The sending unit that reads jack plate position is completely sealed and waterproof, allowing it to hold up to the wet, exposed conditions near the transom and jack plate actuator. Together, the gauge and sending unit form a simple conversion kit that upgrades a jack plate installation with real-time position feedback.

The kit is a complete conversion package, including the position sender gauge, sending unit, sending unit bracket, actuator bracket, wire assembly, and the full set of mounting hardware (machine screws, hex nuts, hex head cap screws, and lock washers) needed to install the gauge and sender. Because it is purpose-built for CMC Power Lift and T-H Marine Hydro-Jacker jack plates, it installs using the existing jack plate mounting points without requiring a different or universal gauge system.

Specifications

• Brand: T-H Marine
• Manufacturer Part Number: 6077
• Product UPC: 739697060775
• Category: Jack Plates
• Gauge Mount Size: Standard 2 inch gauge mount
• Gauge Construction: Sealed, drip-proof gauge with a completely sealed, waterproof sending unit
• Number of Items: 1
• Item Dimensions (L x W x H): 10.25 x 6.75 x 6 inches
• Package Dimensions (L x W x H): 14.41 x 6.61 x 6.46 inches
• Weight: 2.5 pounds

Fitment

• Fits all CMC Power Lift Hydraulic Jack Plate models
• Fits all T-H Marine Hydro-Jacker Hydraulic Jack Plate models

Frequently Asked Questions

What is the T-H Marine Hydraulic Jack Plate Gauge Kit, part number 6077, used for? Gauge kit 6077 is a dash-mounted position indicator system that shows the height setting of a hydraulic jack plate, letting the operator determine jack plate position safely and conveniently from the helm instead of checking visually at the transom.

Which jack plates work with gauge kit 6077? This kit fits all CMC Power Lift Hydraulic Jack Plate models and all T-H Marine Hydro-Jacker Hydraulic Jack Plate models; it is built specifically for those two jack plate lines rather than as a universal gauge.

Is the gauge in kit 6077 waterproof? Yes. The gauge itself is sealed and drip-proof, and the sending unit that reads the jack plate's position is completely sealed and waterproof.

What size cutout does the gauge in kit 6077 require? The position gauge in the T-H Marine kit 6077 uses a standard 2 inch gauge mount, matching common dash gauge cutouts.

What is included with the T-H Marine 6077 gauge kit? The kit includes one position sender gauge, one sending unit, one sending unit bracket, one actuator bracket, one wire assembly, and the mounting hardware (self-tapping and hex head machine screws, hex nuts, and lock washers) needed to install the gauge and sender.

How much does the T-H Marine jack plate gauge kit weigh? Gauge kit 6077 weighs 2.5 pounds.

What are the dimensions of the 6077 gauge kit? The gauge and sending unit assembly measures 10.25 x 6.75 x 6 inches, and it ships in a package measuring 14.41 x 6.61 x 6.46 inches.

Does gauge kit 6077 work with any jack plate, or only specific brands? It is not a universal fit; it is designed to fit all CMC Power Lift Hydraulic Jack Plate models and all T-H Marine Hydro-Jacker Hydraulic Jack Plate models specifically.

Where does the position gauge from kit 6077 mount? The gauge mounts in the dash of the boat using its standard 2 inch mount, while the waterproof sending unit is installed at the jack plate to track its position.

What brand is part number 6077? Part number 6077 is manufactured by T-H Marine and is sold as the Hydraulic Jack Plate Position Gauge Kit for CMC Power Lift and Hydro-Jacker jack plates.
