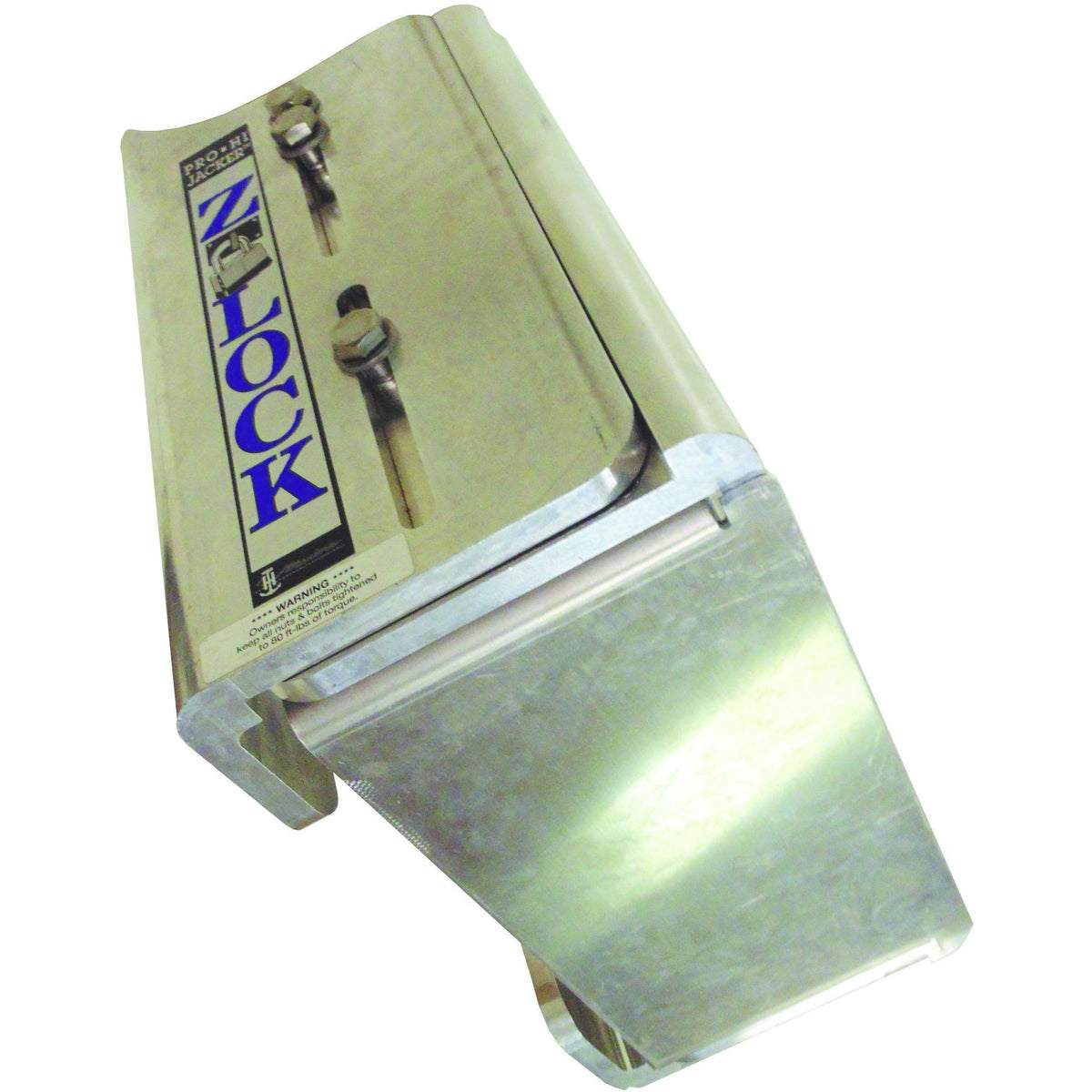

T-H Marine Z-Lock Hole Shot Plate JPZHSP-6, 6 Inch Setback, Fits JPZ-6 Jack Plates

The T-H Marine Z-Lock Hole Shot Plate (JPZHSP-6) is a bolt-on performance plate that attaches to the bottom of a compatible 6 inch setback Z-Lock jack plate to sharpen hole shot and takeoff handling. Marketed under T-H Marine's Hot Shot line, it works by dramatically reducing water drag as the boat comes onto plane, and by doubling as a center trim tab. Owners of Z-Lock manual jack plates use it to get the bow up and the hull planing faster, with the added benefit of reduced porpoising at lower cruising speeds and better plane-holding stability.

Installation is a straightforward bolt-on to the bottom of the jack plate, and the plate ships individually boxed. It is sized specifically for the 6 inch setback Z-Lock jack plate (JPZ-6); T-H Marine also offers matching Hot Shot hole shot plates in 8 inch and 10 inch setback sizes for the corresponding jack plate widths, so boat owners should confirm their jack plate's setback before ordering.

Specifications

• Brand: T-H Marine
• Manufacturer Part Number: JPZHSP-6
• Product Name: Z-Lock Hole Shot Plate
• Setback Size: 6 inches
• Compatible Jack Plate: Z-Lock Jack Plate, 6 inch setback (JPZ-6)
• Category: Jack Plates
• Weight: 1 pound
• UPC: 733572080704
• Packaging: Individually boxed, open quantity

Fitment

Fits T-H Marine's Z-Lock Manual Jack Plate with a 6 inch setback, part number JPZ-6.

Frequently Asked Questions

What does the JPZHSP-6 Hole Shot Plate do? It bolts to the bottom of a Z-Lock jack plate to reduce water drag on takeoff and act as a center trim tab, which improves hole shot and helps the boat get on plane faster.

Which jack plate does the JPZHSP-6 fit? The JPZHSP-6 is sized for T-H Marine's Z-Lock Manual Jack Plate with a 6 inch setback, part number JPZ-6.

Will the JPZHSP-6 fit an 8 or 10 inch setback jack plate? No, the JPZHSP-6 is built for the 6 inch setback Z-Lock jack plate; T-H Marine offers the JPZHSP-8 for 8 inch setback plates and the JPZHSP-10 for 10 inch setback plates.

How much faster is hole shot with this plate installed? T-H Marine states the Hot Shot Hole Shot Plate design delivers an 18 to 20 percent better hole shot, translating to about 2 to 3 seconds faster out of the hole.

Does the Hole Shot Plate help with porpoising? Yes, the JPZHSP-6 reduces porpoising at lower speeds and helps the boat stay on plane by functioning as a center trim tab in addition to cutting water drag.

How much does the JPZHSP-6 weigh? The T-H Marine JPZHSP-6 Hole Shot Plate weighs 1 pound.

How is the Hole Shot Plate installed? The JPZHSP-6 attaches to the bottom of a compatible Z-Lock jack plate as a bolt-on addition.

How is the JPZHSP-6 packaged? It ships individually boxed as an open-quantity item, part number JPZHSP-6.

Is the JPZHSP-6 a genuine T-H Marine part? Yes, JPZHSP-6 is T-H Marine's own part number for the Z-Lock Hole Shot Plate, sized for the 6 inch setback Z-Lock jack plate.

What is the UPC for the T-H Marine JPZHSP-6? The UPC for the JPZHSP-6 Z-Lock Hole Shot Plate is 733572080704.
