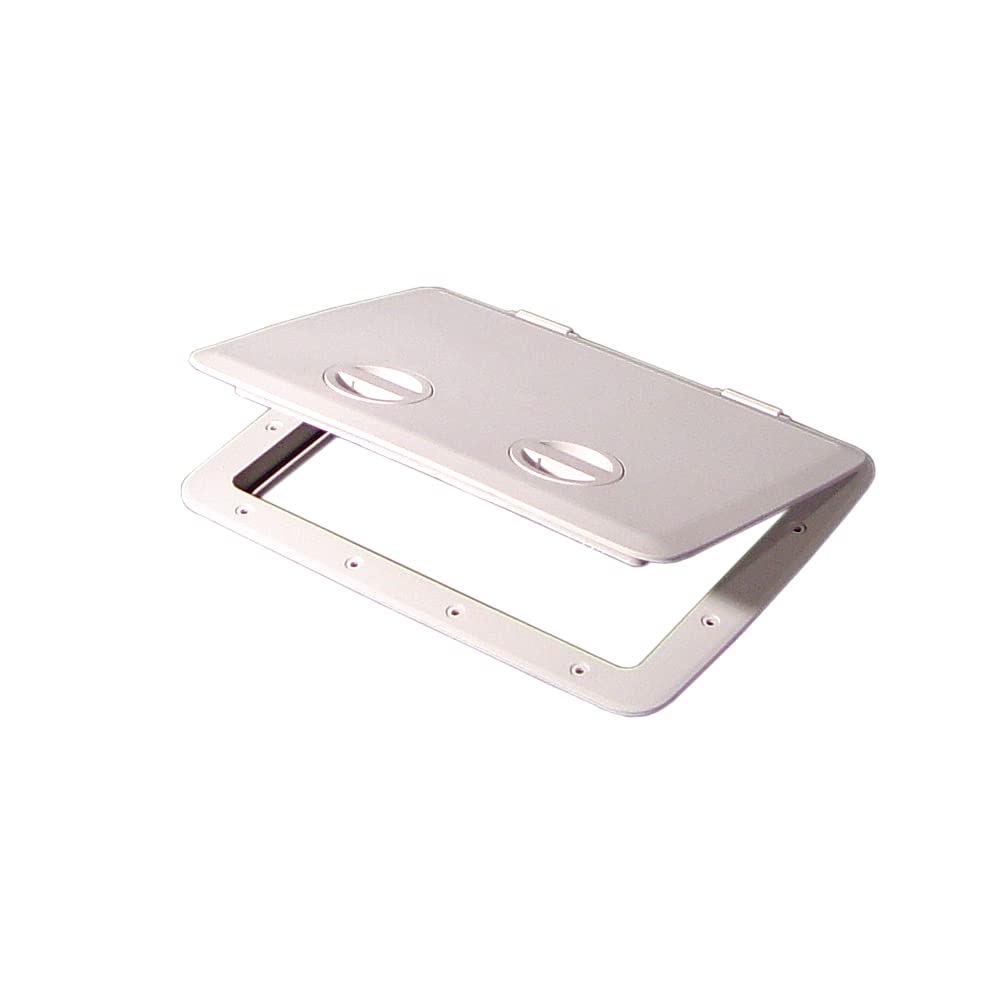

Tempress 44630 Cam Hatch, White, 13 x 17.25 x 1.5 Inches, Without Lock

The Tempress 44630 Cam Hatch is a white deck access hatch built from glass filled polypropylene for strength, durability, and water resistance. It is part of the Tempress access hatch line, designed for heavy traffic areas of a boat where people will walk or stand, and is well suited to dry storage compartments, bait or fish well access, and electrical or plumbing line access. This version does not include a lock.

The hatch uses a cam-style dog-down latch that compresses an integrated gasket with a quarter turn of the wrist, creating a weather tight seal. A patented integral hinge assembly allows the lid to be fully removed for easy access to the compartment below. The lid is beveled and skirted so it covers all mounting fasteners for a clean, finished look above or below deck.

Overall product size is 13 inches x 17.25 inches x 1.5 inches. The hatch requires a cutout measuring 8.625 inches x 12.625 inches, with an inside opening of 7 1/4 inches x 11 1/4 inches and an outside lid measurement of 10 3/4 inches x 15 1/8 inches. Installation requires 10 #12 pan head self-tapping screws. The hatch is made in the USA.

Specifications

• Brand: Tempress
• Manufacturer Part Number: 44630
• Product Type: Cam-Latch Access Hatch
• Color: White
• Material: Glass Filled Polypropylene
• Country of Origin: Made in the USA
• Overall Product Size: 13 inches x 17.25 inches x 1.5 inches
• Cut Out Measurement: 8.625 inches x 12.625 inches
• Inside Dimension: 7 1/4 inches x 11 1/4 inches
• Outside Dimension: 10 3/4 inches x 15 1/8 inches
• Latch Type: Cam dog-down latch
• Lock: Without lock
• Seal: Gasketed, weather tight seal
• Hinge: Integral hinge assembly, removable lid
• Fasteners Required: 10 #12 pan head self-tapping screws
• Weight: 8 pounds
• UPC: 079035446305

Frequently Asked Questions

What are the overall dimensions of the Tempress 44630 Cam Hatch? The Tempress 44630 Cam Hatch measures 13 inches x 17.25 inches x 1.5 inches overall.

What size cutout do I need to install this hatch? You need a cutout of 8.625 inches x 12.625 inches to install the Tempress 44630 Cam Hatch.

Does the Tempress 44630 hatch have a lock? No. The 44630 is the version of the Tempress Cam Hatch made without a lock, using a cam-style dog-down latch instead of a keyed lock.

What is the Tempress 44630 hatch made of? It is made from glass filled polypropylene, a material chosen for strength, durability, and resistance to water.

Is this hatch watertight? The hatch is gasketed and creates a weather tight seal when the cam latch is turned down, though it is described as water resistant rather than fully waterproof.

What is the inside opening size once the hatch is installed? The inside opening of the Tempress 44630 Cam Hatch is 7 1/4 inches x 11 1/4 inches.

What fasteners are needed to mount the hatch? Installing the Tempress 44630 Cam Hatch requires 10 #12 pan head self-tapping screws.

How much does the Tempress 44630 Cam Hatch weigh? The hatch weighs 8 pounds.

Can this hatch be walked on? Yes, the Tempress 44630 Cam Hatch is designed for heavy traffic areas of a boat and will withstand people walking or standing on it.

How does the hatch lid come off for full access to the compartment? The 44630 uses a patented integral hinge assembly that allows the lid to be lifted off completely, giving full access to the space below.

What is this hatch typically used for on a boat? The Tempress 44630 Cam Hatch is commonly used for dry storage compartments, bait or fish well access, and access to electrical or plumbing lines.

What color is the 44630 hatch available in? This listing is for the white version of the Tempress Cam Hatch, part number 44630.
