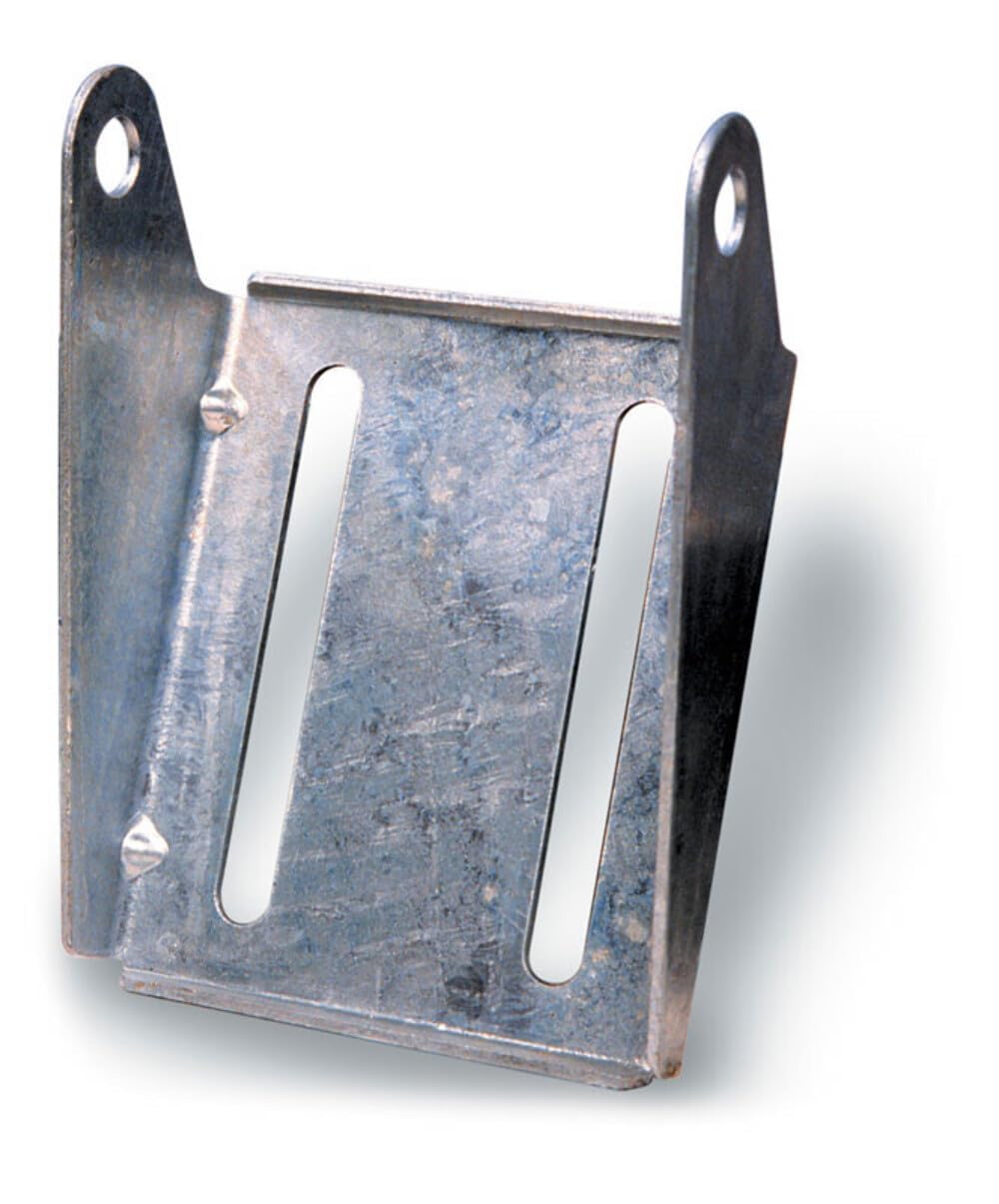

Tie Down Engineering Panel Bracket 86152, Hot Dip Galvanized Steel Keel Roller Bracket

The Tie Down Engineering 86152 is a one-piece panel bracket built to support keel rollers on a boat trailer. It is formed from 11 gauge hot dip galvanized steel, giving it heavy duty corrosion resistance for repeated exposure to water and road spray. The bracket mounts to the trailer frame or bunk and provides vertical adjustment for the roller, letting the installer position the roller height to properly cradle and support the hull as the boat is loaded or retrieved.

The bracket's slots accept 7/16 inch or 1/2 inch diameter mounting bolts, and it is designed to work with 1/2 inch or 5/8 inch diameter roller shafts, covering the most common keel roller assemblies used on recreational boat trailers. Because the bracket allows the roller to be raised or lowered along the slot, it makes it easier to fine-tune roller contact with the keel as trailer setup or boat position changes over time. As a one-piece galvanized steel part, the 86152 is intended as a durable, direct-fit replacement for a worn, bent, or rusted panel bracket, restoring proper keel roller support without replacing the entire roller assembly.

Specifications

• Brand: Tie Down Engineering
• Manufacturer Part Number: 86152
• Product Type: Panel Bracket (keel roller bracket)
• Construction: One-piece steel
• Material: 11 gauge steel
• Finish: Hot dip galvanized
• Function: Supports keel rollers and provides vertical roller adjustment
• Mounting Bolt Slot Size: Accepts 7/16 inch or 1/2 inch diameter bolts
• Compatible Roller Shaft Diameter: 1/2 inch or 5/8 inch
• Weight: 2.64 pounds
• UPC: 081628861525

Frequently Asked Questions

What is the Tie Down Engineering 86152 panel bracket used for? The 86152 is a panel bracket that supports keel rollers on a boat trailer and provides vertical adjustment so the roller height can be set to properly cradle the hull.

What material is the 86152 bracket made from? It is made from 11 gauge steel with a hot dip galvanized finish, built as a one-piece part for corrosion resistance in wet trailering conditions.

What roller shaft sizes work with this bracket? The 86152 panel bracket is designed for 1/2 inch or 5/8 inch diameter roller shafts.

What size mounting bolts does the 86152 bracket accept? Its slots accept 7/16 inch or 1/2 inch diameter bolts for mounting to the trailer frame or bunk.

Is the 86152 a one-piece or multi-piece bracket? It is a one-piece, heavy duty hot dip galvanized steel bracket.

How much does the 86152 panel bracket weigh? The Tie Down Engineering 86152 weighs 2.64 pounds.

Can the roller height be adjusted on this bracket? Yes, the 86152 provides vertical roller adjustment, allowing the keel roller position to be raised or lowered to properly support the boat.

Does the 86152 bracket resist rust? It is hot dip galvanized, which gives the 11 gauge steel bracket corrosion resistance for outdoor and marine trailering use.

What is the UPC for the Tie Down Engineering 86152? The UPC for the 86152 panel bracket is 081628861525.

Does Tie Down Engineering make this bracket in other sizes? Yes, Tie Down Engineering offers panel brackets in this same product line in additional sizes, including part numbers 86155 and 86153, so buyers should confirm 86152 is the correct part number before ordering.
