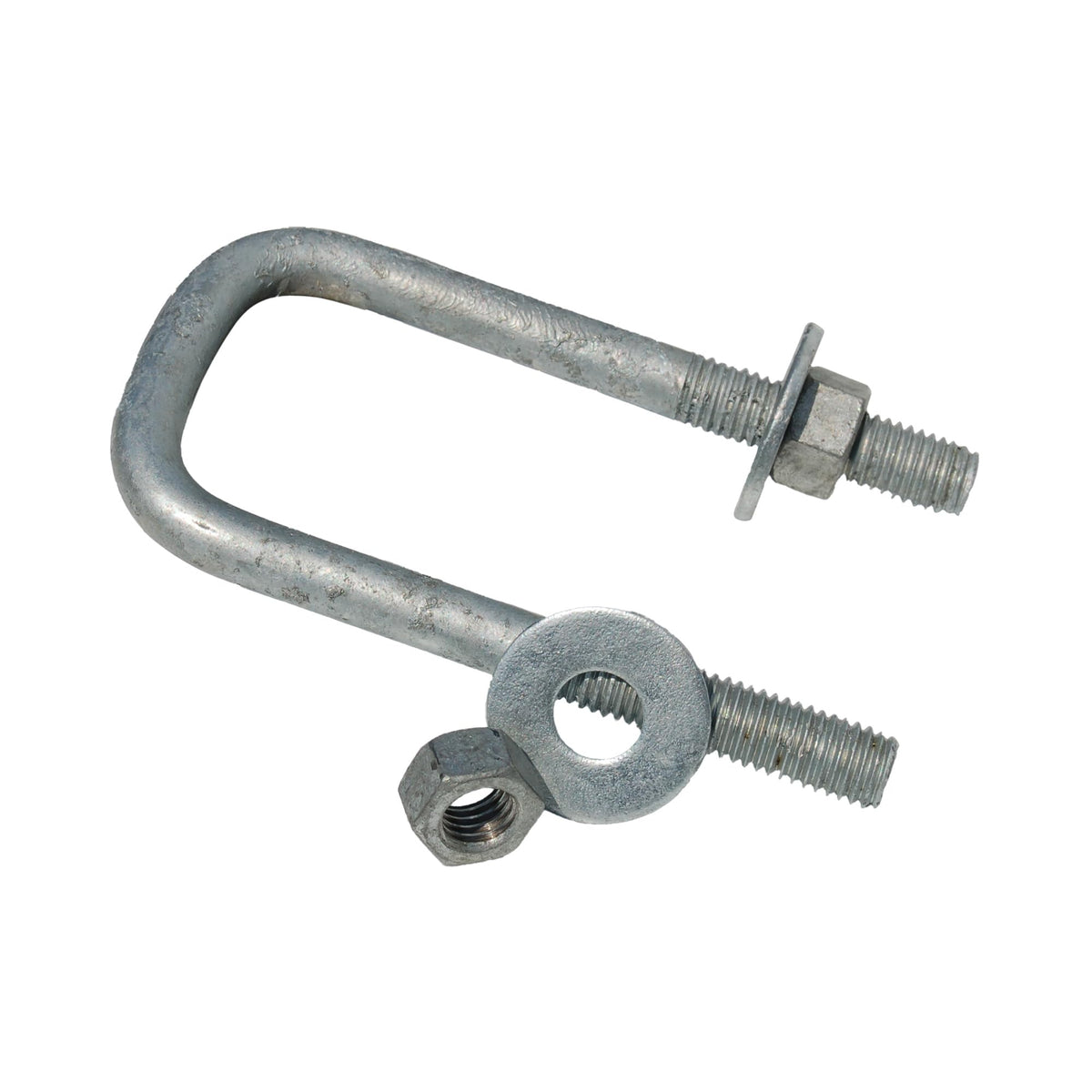

Tie Down 86223 Galvanized Square U-Bolt, 1/2 in.-13 Thread, Fits 2 in. Square Trailer Frame

The Tie Down 86223 is a galvanized square U-bolt sized to fit 2 in. Square trailer frame tubing, sold individually (each). It is built with a 1/2 in.-13 thread and measures 2-1/8 in. Wide by 4 in. Long, making it a direct fit for axle, leaf spring, and frame mounting applications that call for this thread pitch and square bend profile. The galvanized finish provides corrosion resistance for trailers used in wet, road-salt, or marine-adjacent environments where rust is a constant concern.

Square U-bolts like the 86223 are commonly used to clamp leaf springs to trailer axles, secure roller brackets and bunk brackets to a square trailer frame, or mount other hardware where a square-bend U-bolt is required rather than a round one. Because it is sold as a single unit, buyers needing a matched pair for a bracket or spring installation should order two, or select Tie Down's pre-packaged pair option for the same dimensions.

Specifications

• Brand: Tie Down
• Manufacturer Part Number: 86223
• Shape: Square
• Thread Size: 1/2 in.-13
• Width: 2-1/8 in.
• Length: 4 in.
• Fits Frame Size: 2 in. Square
• Finish: Galvanized
• Material: Steel
• Weight: 0.76 pounds
• Package Quantity: 1 (Each)
• UPC: 081628862232

Fitment

Fits 2 in. Square trailer frame or axle tubing. Not intended for round tubing; a round-tube version of this U-bolt is offered under different part numbers.

Frequently Asked Questions

What size frame does the Tie Down 86223 U-bolt fit? The Tie Down 86223 is sized for 2 in. Square trailer frame or axle tubing. It is a square-bend U-bolt, not a round one, so it is meant for square tube applications.

What thread size is the 86223 U-bolt? It has a 1/2 in.-13 thread, meaning a 1/2 inch diameter rod with 13 threads per inch.

What are the dimensions of part number 86223? The 86223 U-bolt measures 2-1/8 in. Wide by 4 in. Long, with a 1/2 in.-13 threaded rod.

Is the 86223 U-bolt sold as a single unit or a pair? It is sold each, meaning one U-bolt per order. Buyers who need two matching U-bolts for a spring or bracket installation should order two units.

What finish does the Tie Down 86223 have? The 86223 U-bolt has a galvanized finish for corrosion resistance in wet or road-salt environments.

How much does the 86223 U-bolt weigh? The Tie Down 86223 weighs 0.76 pounds.

Is there a zinc-plated version of this same U-bolt? Yes, Tie Down offers the same 2 in. Square, 1/2 in.-13 thread U-bolt in a zinc-plated finish under part number 86215.

Does Tie Down make a two-pack of this U-bolt? Yes, the same 2 in. Square U-bolt dimensions are also available as a pair under part number 86204.

What is included with the 86223 U-bolt? The 86223 is the U-bolt itself, sold each; it does not include mounting hardware such as nuts or washers in this listing.

Is the 86223 U-bolt used for leaf spring or axle mounting? Square U-bolts like the 86223 are commonly used to clamp leaf springs to a trailer axle or to secure brackets to a 2 in. Square trailer frame.

What material is the Tie Down 86223 U-bolt made from? It is made from steel with a galvanized finish.

Is a round-tube version of this U-bolt available? Yes, for round 2 in. Tube frames Tie Down offers equivalent U-bolts under part numbers 86217 and 86225 instead of the square-bend 86223.
