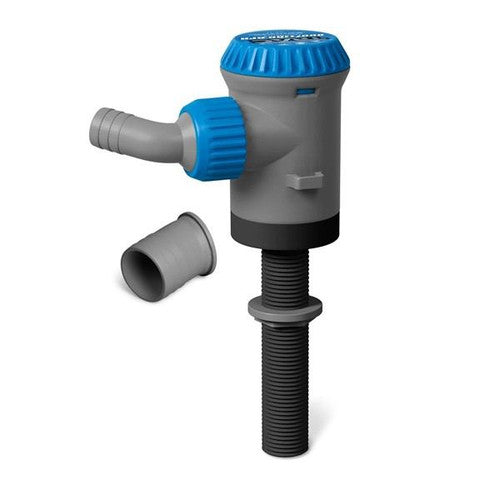

Trac 69321 Submersible Thru-Hull Pump, 800/1100 GPH, 12V DC Livewell Pump

The Trac 69321 Submersible Thru-Hull Pump is a self-priming, 12V DC centrifugal pump built for livewell and baitwell installations on all types of watercraft. It uses a cartridge style pump head paired with a universal strainer base, and the pump body accepts both a 3/4 inch screw-on outlet (800 GPH) and a 1-1/8 inch screw-on outlet (1100 GPH) in the same package, so one pump covers two common outlet sizes. Each outlet is fitted with an O-ring so it can be threaded on and off without stripping the threads, making it easy to switch outlet sizes as needed.

Designed for easy installation and retrofitting, the pump mounts through a drilled hull opening and draws water from below the waterline to feed a livewell control valve. It is fully submersible, runs dry without damage, and is ignition protected with a low power draw, drawing 3.7A at 13.6V DC on a 5 amp fuse. The universal strainer base is connection-compatible with Attwood Tsunami, Rule, and Johnson/Mayfair cartridge pumps, and its screw mounting holes match Rule and Attwood Tsunami patterns, simplifying replacement on boats already set up for those pumps.

The Trac 69321 meets ABYC, Coast Guard, and ISO marine standards and is backed by a 1 year manufacturer's warranty.

Specifications

• Brand: Trac
• Manufacturer Part Number: 69321
• Voltage: 12V DC
• Outlet Size 1: 3/4 inch, 800 GPH
• Outlet Size 2: 1-1/8 inch, 1100 GPH
• Fuse Rating: 5 Amp
• Current Draw: 3.7A @ 13.6V DC
• Material: Plastic
• Color: Grey
• Weight: 1 pound
• Pump Style: Submersible, self-priming centrifugal
• Ignition Protection: Yes
• Marine Standards: ABYC, Coast Guard, ISO
• Warranty: 1 year manufacturer's warranty

Fitment

• Universal strainer base is connection-compatible with Attwood Tsunami, Rule, and Johnson/Mayfair cartridge pumps
• Screw mounting holes match Rule and Attwood Tsunami patterns
• Suitable for all watercraft livewell and baitwell installations

Frequently Asked Questions

What GPH flow rate does the Trac 69321 pump provide? The Trac 69321 delivers 800 GPH through its 3/4 inch outlet or 1100 GPH through its 1-1/8 inch outlet, since it ships with both outlet sizes in one package.

Is the Trac 69321 pump submersible? Yes, the Trac 69321 Submersible Thru-Hull Pump is fully submersible and can run dry without damage.

What voltage does this pump run on? The Trac 69321 operates on 12V DC and draws 3.7A at 13.6V DC, protected by a 5 amp fuse.

Will this pump fit my existing Rule or Attwood Tsunami mounting holes? Yes, the screw mounting holes on the Trac 69321 match Rule and Attwood Tsunami patterns, and its universal strainer base is also connection-compatible with Johnson/Mayfair cartridge pumps.

What is the pump body made of? The Trac 69321 pump housing is constructed of plastic in a grey finish.

How much does the Trac 69321 weigh? The Trac 69321 Submersible Thru-Hull Pump weighs 1 pound.

Is the Trac 69321 ignition protected? Yes, this pump is ignition protected and designed with a low power draw, meeting ABYC, Coast Guard, and ISO marine standards.

What outlet sizes come with the Trac 69321? The package includes both a 3/4 inch outlet rated at 800 GPH and a 1-1/8 inch outlet rated at 1100 GPH, each fitted with an O-ring for easy installation without stripping the threads.

How is the Trac 69321 different from the Trac 69320? The Trac 69321 is the higher-flow version, offering both 800 GPH and 1100 GPH outlet options in one package, while providing the same 12V submersible, ignition-protected design.

What warranty comes with this pump? Trac backs the 69321 Submersible Thru-Hull Pump with a 1 year manufacturer's warranty.

Can this pump be used for a livewell or baitwell setup? Yes, the Trac 69321 is designed for thru-hull installation to feed a livewell or baitwell control valve on any watercraft.

Does the Trac 69321 require a specific fuse size? The pump is rated for a 5 amp fuse on its 12V DC circuit.
