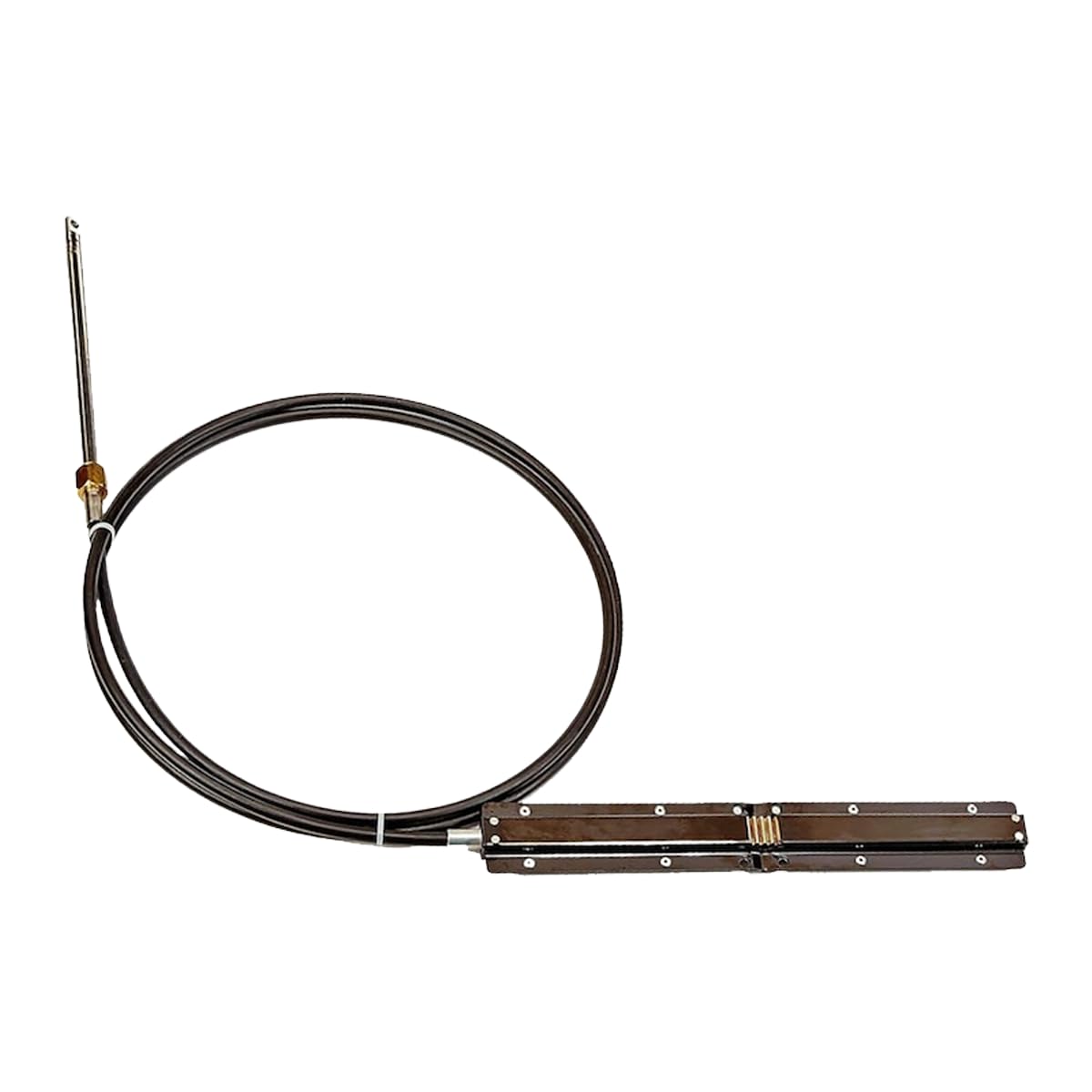

Uflex M86X10 Rack Steering Cable, 10 Feet, Replaces Teleflex SC124 The Rack and Morse Command 200

The Uflex M86X10 is a 10 foot rack steering cable built for rack and pinion steering systems, including the Uflex Racktech Rack and Pinion steering package. It is designed as a direct replacement for Uflex, Teleflex SC124 "The Rack", and Morse Command 200 steering cables with no adapters required, making it a straightforward swap when an existing rack cable has worn out or lost precision.

The cable core is armor wrapped stainless steel, which delivers efficient, low-friction operation and minimal lost motion at the helm, so steering input translates directly to rudder or outdrive movement without slop. The engine output fittings are solid stainless steel, adding corrosion resistance and long-term durability in a marine environment where saltwater exposure and constant vibration are common. This construction is intended for boats using rack and pinion steering, particularly power assisted sterndrive applications and other setups with minimal rudder torque, where a compact steering cable helps with installation in tight spaces behind the dash.

As a rack steering cable, the M86X10 is the mechanical link between the helm and the outdrive or rudder assembly, and it is sold as the cable itself for use in rack and pinion steering installations or replacements.

Specifications

• Brand: Uflex
• Manufacturer Part Number: M86X10
• Cable Length: 10 feet
• Steering System Type: Rack and pinion
• Core Construction: Armor wrapped stainless steel core
• Engine Output Fittings: Solid stainless steel
• Recommended Use: Power assisted sterndrives and other applications with minimal rudder torque
• Weight: 8.6 pounds
• Package Dimensions: 12 x 12 x 12 inches
• UPC: 702755017615
• Replaces (OEM): Teleflex SC124 "The Rack", Morse Command 200

Fitment

Recommended for boats with rack and pinion steering, particularly power assisted sterndrive applications and other installations with minimal rudder torque and minimal clearance behind the dash.

Replaces (OEM)

• Teleflex SC124 "The Rack"
• Morse Command 200

Frequently Asked Questions

What is the Uflex M86X10? The M86X10 is a 10 foot rack steering cable used in rack and pinion boat steering systems, including the Uflex Racktech Rack and Pinion steering package.

Does the M86X10 replace a Teleflex SC124 cable? Yes, the M86X10 directly replaces the Teleflex SC124 "The Rack" steering cable with no adapters needed.

Is the M86X10 compatible with a Morse Command 200 cable? Yes, the M86X10 is a direct replacement for the Morse Command 200 steering cable with no adapters required.

How long is the M86X10 steering cable? The M86X10 is 10 feet long.

What is the core of the M86X10 made from? It uses an armor wrapped stainless steel core, which provides efficient operation and minimal lost motion at the helm.

What are the engine output fittings made of on this cable? The M86X10 uses solid stainless steel engine output fittings for corrosion resistance and long-term durability.

What boats or applications is the M86X10 recommended for? The M86X10 is recommended for power assisted sterndrives and other rack and pinion steering applications with minimal rudder torque, including installations with limited clearance behind the dash.

How much does the M86X10 steering cable weigh? The M86X10 weighs 8.6 pounds.

Do I need adapters to install the M86X10 in place of an SC124 or Command 200 cable? No, the M86X10 is designed to replace the Teleflex SC124 "The Rack" and Morse Command 200 cables with no adapters.

What are the package dimensions of the M86X10? The M86X10 ships in a package measuring 12 x 12 x 12 inches.

Is the M86X10 sold as just the cable or a full steering kit? The M86X10 is the rack steering cable itself; it is used within rack and pinion steering setups such as the Uflex Racktech package.

What is the UPC for the Uflex M86X10? The UPC for the Uflex M86X10 rack steering cable is 702755017615.
