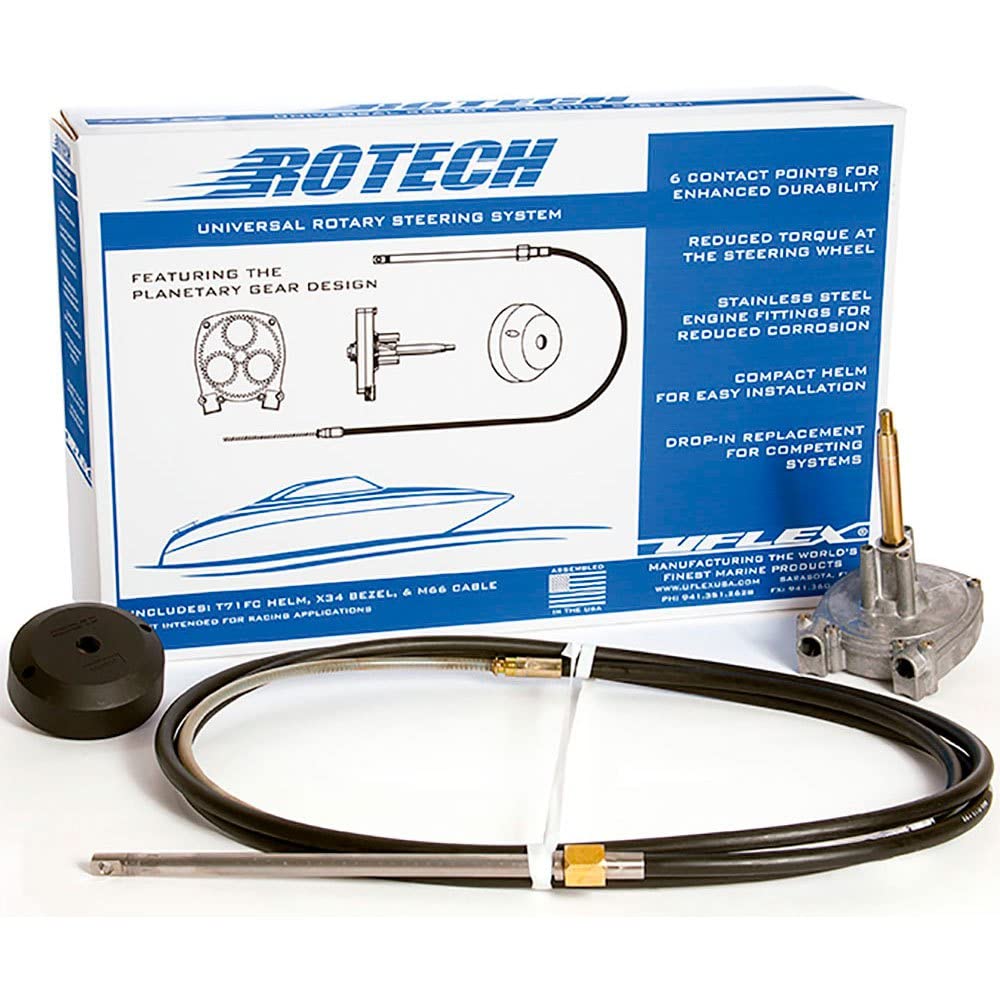

UFlex Rotech 15 Foot Rotary Steering Package with T71FC Helm, X34 Bezel and M66 Cable

The UFlex Rotech 15 Foot Rotary Steering Package (ROTECH15FC) is a complete rotary steering system built around the T71FC helm, which uses a planetary gear design to reduce steering effort and deliver more balanced loads on the wheel. The planetary gear layout also creates a wider wear area than conventional rotary helms, which cuts down on lost motion over time and improves long-term durability. Because the gearing is centered on the main drive shaft, the T71FC helm requires less room behind the dash than many competing designs and is built as a direct drop-in replacement, so no new mounting holes are needed during installation.

The package pairs the T71FC helm with the X34 90 degree bezel for a clean dash-mounted finish and the M66 Universal Rotary Steering Cable, cut to 15 feet, which uses stainless steel output fittings for corrosion resistance and smooth, consistent steering feel over the life of the cable. Together, the three components form a ready-to-install rotary steering kit suited to boats using a compatible rotary (non-hydraulic) steering setup.

Specifications

• Brand: UFlex
• Manufacturer Part Number: ROTECH15FC
• Product Type: Rotary Steering System
• Included Components: T71FC Helm, X34 90 Degree Bezel, M66 Rotary Steering Cable
• Cable Length: 15 feet
• Cable Type: M66 Universal Rotary Steering Cable
• Output Fittings: Stainless Steel
• Helm Design: Planetary Gear
• Bezel: X34, 90 Degree
• Color: Beige
• Material: Plastic
• Fit Type: Universal Fit
• Weight: 14.1 pounds

Frequently Asked Questions

What is included in the UFlex Rotech 15 Foot Rotary Steering Package? The ROTECH15FC kit includes the T71FC helm, the X34 90 degree bezel, and the M66 Universal Rotary Steering Cable cut to 15 feet, giving you a complete rotary steering setup in one package.

How long is the steering cable in this kit? The M66 steering cable included with the UFlex Rotech ROTECH15FC package is 15 feet long.

What makes the T71FC helm different from a standard rotary helm? It uses a planetary gear design centered on the main drive shaft, which reduces steering effort, balances loads on the wheel more evenly, and creates a wider wear area that reduces lost motion over time compared to conventional rotary helm designs.

Will the T71FC helm fit in place of my existing rotary helm without new holes? Yes. The T71FC helm in the ROTECH15FC package is designed as a direct drop-in replacement for competing rotary steering systems, so it does not require drilling new mounting holes.

What is the bezel used for in this steering package? The X34 is a 90 degree bezel included in the ROTECH15FC kit that provides the dash-side mounting finish for the T71FC helm.

What material and color is the helm? The helm in the UFlex Rotech ROTECH15FC package is made of plastic and finished in beige.

Why does the M66 cable use stainless steel fittings? The M66 Universal Rotary Steering Cable included in this kit has stainless steel output fittings for corrosion resistance and to maintain smooth, consistent steering performance over time.

How much does the ROTECH15FC steering package weigh? The complete UFlex Rotech 15 Foot Rotary Steering Package weighs 14.1 pounds.

Is this a hydraulic or rotary steering system? The ROTECH15FC is a rotary (mechanical cable) steering system, not a hydraulic system, built around the T71FC planetary gear helm and M66 rotary cable.

Is this steering package designed for a specific boat type? The UFlex Rotech ROTECH15FC package is a universal-fit rotary steering system rather than one built for a single boat model.
