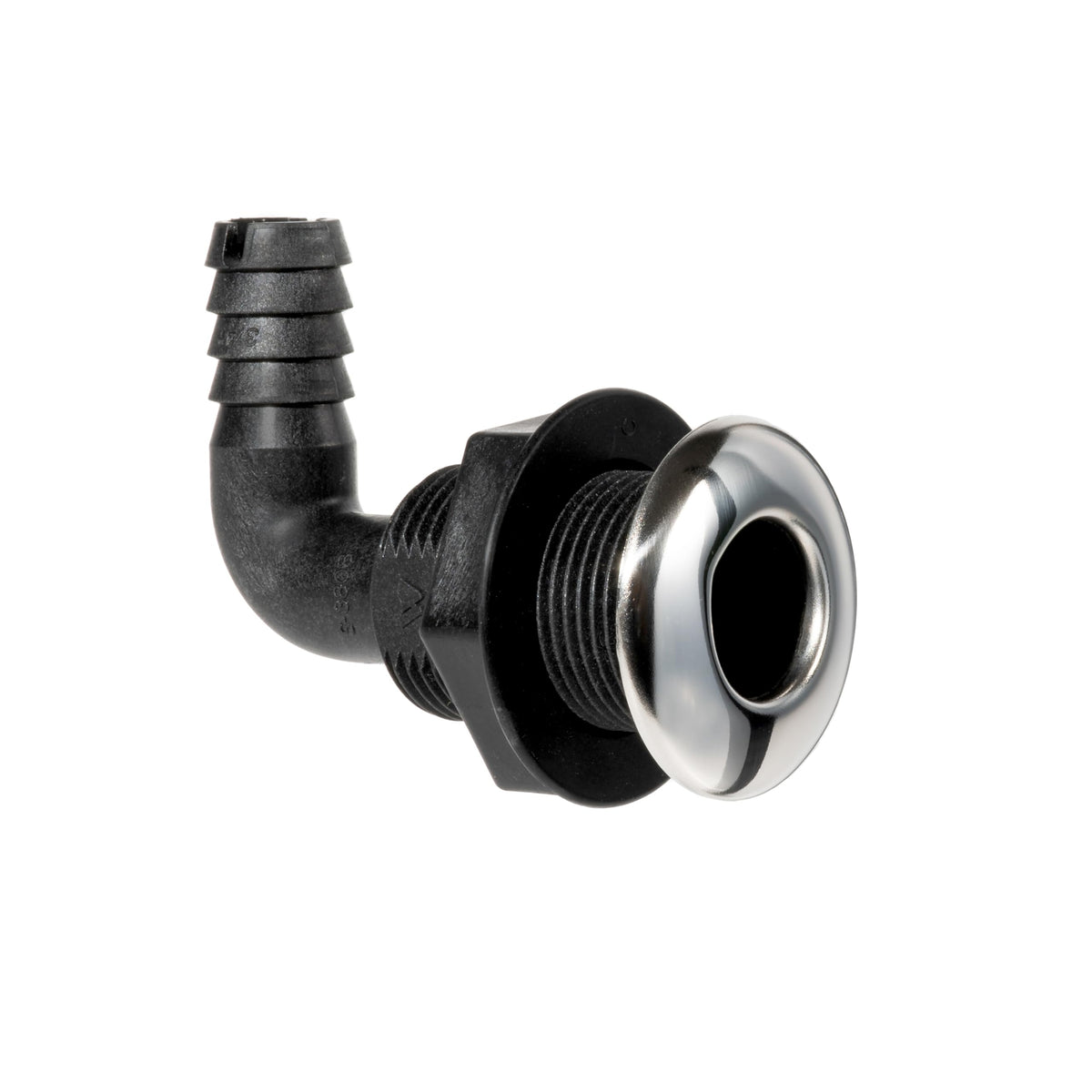

Whitecap S-3809C 90-Degree Thru-Hull Fitting with Barb, 1 Inch Hose Size
Whitecap S-3809C 90-Degree Thru-Hull Fitting with Barb, 1 Inch Hose Size
The Whitecap S-3809C is a 90-degree thru-hull fitting with a barbed hose connection, built for routing a 1 inch hose through the hull at a right angle where a straight-through fitting will not fit the available space. The angled barb outlet lets the hose run parallel to the hull or turn into a tight compartment without a sharp hose bend, which helps prevent hose kinking and premature wear at the connection point. Construction combines 316 stainless steel with plastic components for corrosion resistance in a marine environment. The fitting is sized for a 1 inch hose, with a flange outside diameter of 1-7/8 inches and a hull cut-out of 1-5/16 inches, so it mounts to a hull with a standard 1-5/16 inch hole. Thread length is 1-5/8 inches and barb length is 1-1/8 inches, with a maximum hull thickness rating of 1-1/4 inches, making it suited for hulls up to that thickness. Typical uses include bilge pump discharge, livewell or baitwell drains, washdown lines, and other below-waterline or above-waterline plumbing runs where a 1 inch hose needs to pass through the hull at an angle. Secure the hose to the barb with an appropriately sized hose clamp and bed the flange against the hull with marine sealant for a watertight installation.
Specifications
- Brand: Whitecap
- Manufacturer Part Number: S-3809C
- Angle: 90 degrees
- Hose Size: 1 inch
- Flange Outside Diameter: 1-7/8 inches
- Hull Cut-Out Diameter: 1-5/16 inches
- Thread Length: 1-5/8 inches
- Barb Length: 1-1/8 inches
- Maximum Hull Thickness: 1-1/4 inches
- Product Dimensions: 6.75 x 3 x 1.5 inches
- Weight: 0.25 pounds
- Material: 316 stainless steel and plastic
Frequently Asked Questions
What is the Whitecap S-3809C used for? The Whitecap S-3809C is a 90-degree thru-hull fitting with a barb, used to pass a 1 inch hose through a boat hull at a right angle, commonly for bilge discharge, livewell or baitwell drains, and washdown lines.
What size hose does the S-3809C fitting accept? It is sized for a 1 inch hose, with a barb length of 1-1/8 inches for the hose connection on part number S-3809C.
What size hole do I need to cut in the hull? A cut-out of 1-5/16 inches is required to mount the Whitecap S-3809C thru-hull fitting.
What is the maximum hull thickness this fitting will work with? The S-3809C is rated for a maximum hull thickness of 1-1/4 inches.
What is the flange size of this thru-hull fitting? The flange outside diameter of the Whitecap S-3809C is 1-7/8 inches.
What material is the S-3809C thru-hull fitting made from? It is constructed of 316 stainless steel combined with plastic components for corrosion resistance in marine use.
Why is this fitting angled at 90 degrees instead of straight? The 90-degree angle on the S-3809C lets the 1 inch hose run parallel to the hull or into a tight compartment without a sharp bend, reducing hose kinking compared to a straight thru-hull fitting.
How much does the Whitecap S-3809C weigh? The S-3809C thru-hull fitting weighs 0.25 pounds.
What are the overall dimensions of the S-3809C? Product dimensions are 6.75 x 3 x 1.5 inches for the Whitecap S-3809C thru-hull fitting.
How is the S-3809C installed and sealed? Installation involves cutting a 1-5/16 inch hole in the hull, fitting the flange with marine sealant for a watertight bond, running the 1 inch hose over the barb, and securing it with a properly sized hose clamp.
