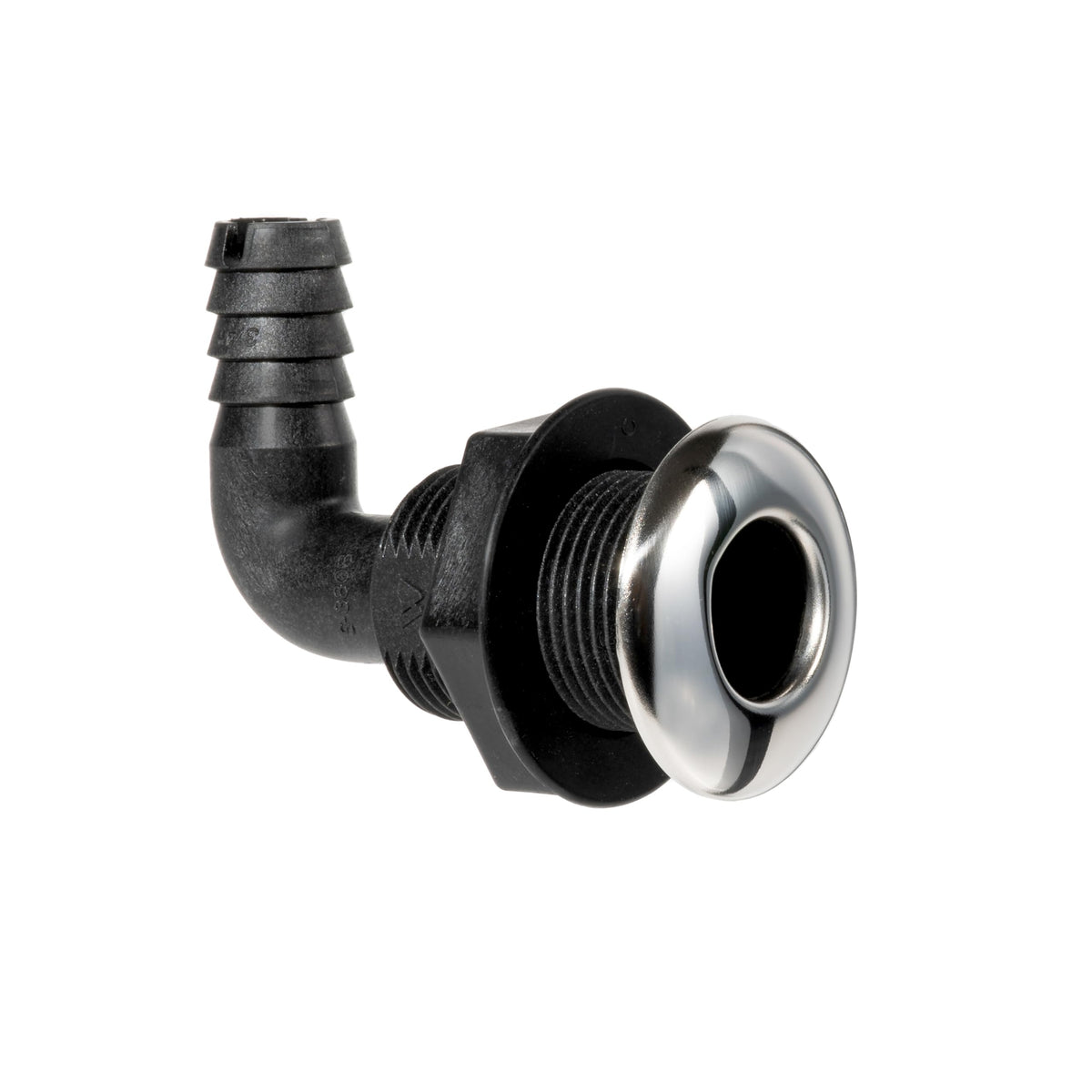

Whitecap Industries S-3808C 90 Degree Stainless Steel Thru-Hull Fitting with Barb, 3/4 Inch

The Whitecap Industries S-3808C is a 90 degree thru-hull fitting with a barb connection, built for routing a hose through a boat hull at a right angle rather than straight through. It is made of 316 stainless steel with a nylon component and finished in black, giving it corrosion resistance for continuous saltwater or freshwater exposure. The 90 degree barb design lets a hose enter the hull at an angle, which is useful in tight spaces below the waterline where a straight thru-hull will not fit or where hose routing needs to turn immediately at the hull wall.

The fitting is sized for a 3/4 inch hose and has a flange outer diameter of 1-7/8 inches, a thread length of 1-7/8 inches, and a barb length of 15/16 inch. Overall length of the fitting is 3-1/8 inches, and it requires a cut out of 1-5/16 inches in the hull. It is rated for hulls up to 1-1/4 inches thick, covering most fiberglass and composite hull sections. Typical uses include bilge pump discharge, livewell and baitwell plumbing, washdown lines, and other below-waterline hose connections where a secure, corrosion-resistant barb fitting is needed.

Specifications

• Brand: Whitecap Industries
• Manufacturer Part Number: S-3808C
• Type: 90 Degree Thru-Hull Fitting with Barb
• Material: 316 Stainless Steel / Nylon
• Color: Black
• Hose Size: 3/4 inch
• Flange Outer Diameter: 1-7/8 inches
• Thread Length: 1-7/8 inches
• Barb Length: 15/16 inch
• Overall Length: 3-1/8 inches
• Cut Out Diameter: 1-5/16 inches
• Max Hull Thickness: 1-1/4 inches
• Weight: 0.25 pounds
• UPC: 725060380816

Frequently Asked Questions

What hose size does the Whitecap Industries S-3808C thru-hull fit? The S-3808C is sized for a 3/4 inch hose, connecting via its barb fitting.

What angle is this thru-hull fitting? It is a 90 degree thru-hull fitting, so the hose barb turns at a right angle from the hull wall instead of running straight through.

What material is the S-3808C made of? It is made of 316 stainless steel with a nylon component, finished in black, for corrosion resistance in marine environments.

What size hole do I need to cut in the hull to install this fitting? The Whitecap S-3808C requires a cut out of 1-5/16 inches in the hull.

What is the maximum hull thickness this fitting works with? The S-3808C is rated for hulls up to 1-1/4 inches thick.

How long is the S-3808C thru-hull fitting overall? Overall length is 3-1/8 inches, with a thread length of 1-7/8 inches and a barb length of 15/16 inch.

What is the flange diameter of this fitting? The flange outer diameter of the S-3808C is 1-7/8 inches.

How much does the S-3808C weigh? The Whitecap Industries S-3808C weighs 0.25 pounds.

What is this thru-hull fitting typically used for? Common uses for a 90 degree barbed thru-hull like the S-3808C include bilge pump discharge, livewell and baitwell plumbing, and washdown hose routing below the waterline.

Is the S-3808C suitable for both saltwater and freshwater use? Yes, its 316 stainless steel and nylon construction is corrosion resistant, making the S-3808C suitable for saltwater and freshwater installations.
