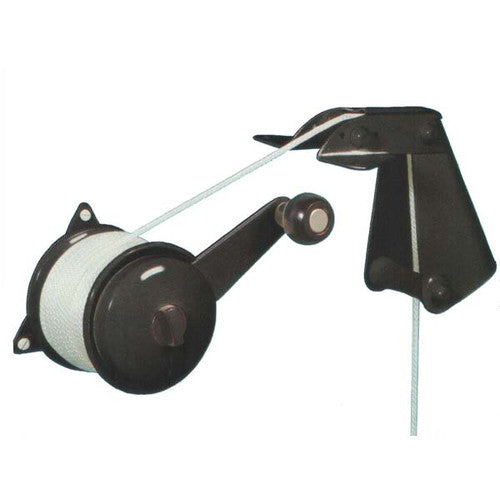

Worth AnchorMate 15036 Anchor Control System, Anchor Reel and Bow Fixture, 100 ft Line Capacity

The Worth AnchorMate 15036 is a complete anchor control system built to store and deploy your anchor with the turn of a button. The kit includes one No. 100 anchor reel and one No. 50 bow fixture, giving you a full setup for storing anchor line and running it out cleanly along the hull. The free-spooling reel stops anywhere you choose as the anchor drops, and the handle itself stays stationary while paying out line, so if your hand slips while reeling in, the handle and anchor simply stop in place rather than spinning free.

Both the reel and bow fixture are built from heavy gauge steel with an electrostatic powder coated paint finish for corrosion resistance, and the reel uses self-lubricating nylon rollers for smooth, quiet operation. The reel mounts with a 3-point bracket that fits flat or curved hulls, and Worth recommends the system for a mushroom or river special anchor weighing 8 to 12 pounds. The reel holds up to 100 feet of 3/16 inch nylon braided rope. Anchor, rope, and mounting hardware are not included and are sold separately. Operation is simple: turning the control button clockwise releases the anchor until you release the button or it hits bottom, and turning the handle clockwise raises it back up; the button and handle should never be turned counterclockwise. This system is made in the USA.

Specifications

• Brand: Worth
• Manufacturer Part Number: 15036
• Dimensions: 10.25 inches H x 17.5 inches W x 14.25 inches D
• Weight: 5 pounds
• Construction: Heavy gauge steel with electrostatic powder coated paint finish and self-lubricating nylon rollers
• Line Capacity: 100 feet of 3/16 inch nylon braided rope
• Recommended Anchor Style: Mushroom or river special
• Recommended Anchor Weight: 8 to 12 pounds
• Mounting: 3-point bracket, fits flat or curved hulls
• Kit Contents: 1 No. 100 anchor reel, 1 No. 50 bow fixture
• Color: Black
• Country of Origin: USA
• UPC: 033709150363

Frequently Asked Questions

What is included with the Worth AnchorMate 15036 anchor control system? The Worth AnchorMate 15036 kit includes one No. 100 anchor reel and one No. 50 bow fixture. Anchor line, the anchor itself, and mounting hardware are not included and must be purchased separately.

How much anchor line does the AnchorMate 15036 hold? 100 feet of 3/16 inch nylon braided rope, which is sold separately from the reel.

What size anchor works with this system? Worth recommends a mushroom or river special style anchor weighing 8 to 12 pounds for use with the AnchorMate 15036 reel.

How does the AnchorMate anchor reel operate? Turning the control button clockwise releases anchor line until you release the button or the anchor reaches bottom, and turning the handle clockwise raises the anchor back up on the AnchorMate 15036. The button and handle should never be turned counterclockwise, as this can damage the reel.

What is the Worth AnchorMate 15036 made of? It is built from heavy gauge steel with an electrostatic powder coated paint finish, with self-lubricating nylon rollers on the reel for smooth, quiet operation.

Is mounting hardware included with the AnchorMate 15036? No. You will need 3 bolts or screws to fasten the anchor reel bracket and 4 bolts or screws to fasten the bow mount; these are not included in the kit.

What are the dimensions of the AnchorMate 15036 unit? 10.25 inches high by 17.5 inches wide by 14.25 inches deep.

Will the AnchorMate reel fit any boat hull? Yes, the reel's 3-point mounting bracket is designed to fit flat or curved hulls.

Where should the AnchorMate reel be mounted? On either side of the boat near the oar locks or transom, with enough clearance so the reel does not interfere with oars or the motor.

How much does the Worth AnchorMate 15036 weigh? The complete AnchorMate 15036 system weighs 5 pounds.

What is the difference between the AnchorMate and the AnchorMate II? The AnchorMate 15036 holds 100 feet of 3/16 inch nylon braided rope, while the AnchorMate II system holds 150 feet of the same line, making the AnchorMate II suited to longer anchor drops.

Is a reel-only replacement available if I already own a bow fixture? Yes, a replacement anchor reel is sold separately for owners who already have a bow fixture installed and only need to replace the reel portion of the AnchorMate system.
